DA200 Series INVT AC Servo 0.4 - 55kW

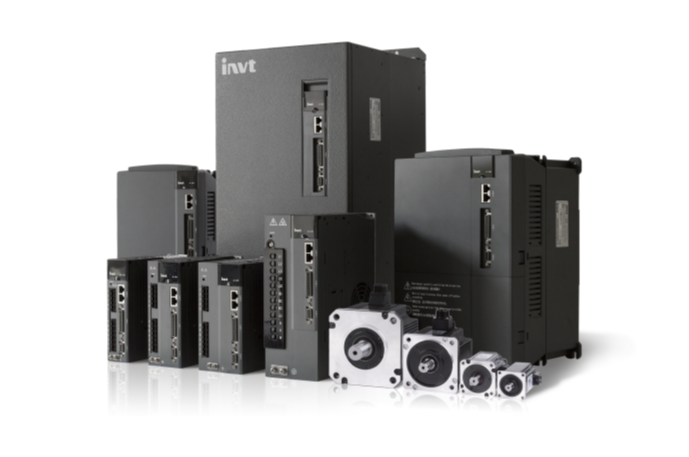

INVT SV-DA200  AC servo drive series
Rated power: 0.4 up to 3,0 kW
Input:AC 1PH/3PH 200-230V +/-15% 47-63Hz
Output: AC 3PH 0-230V 0-400Hz

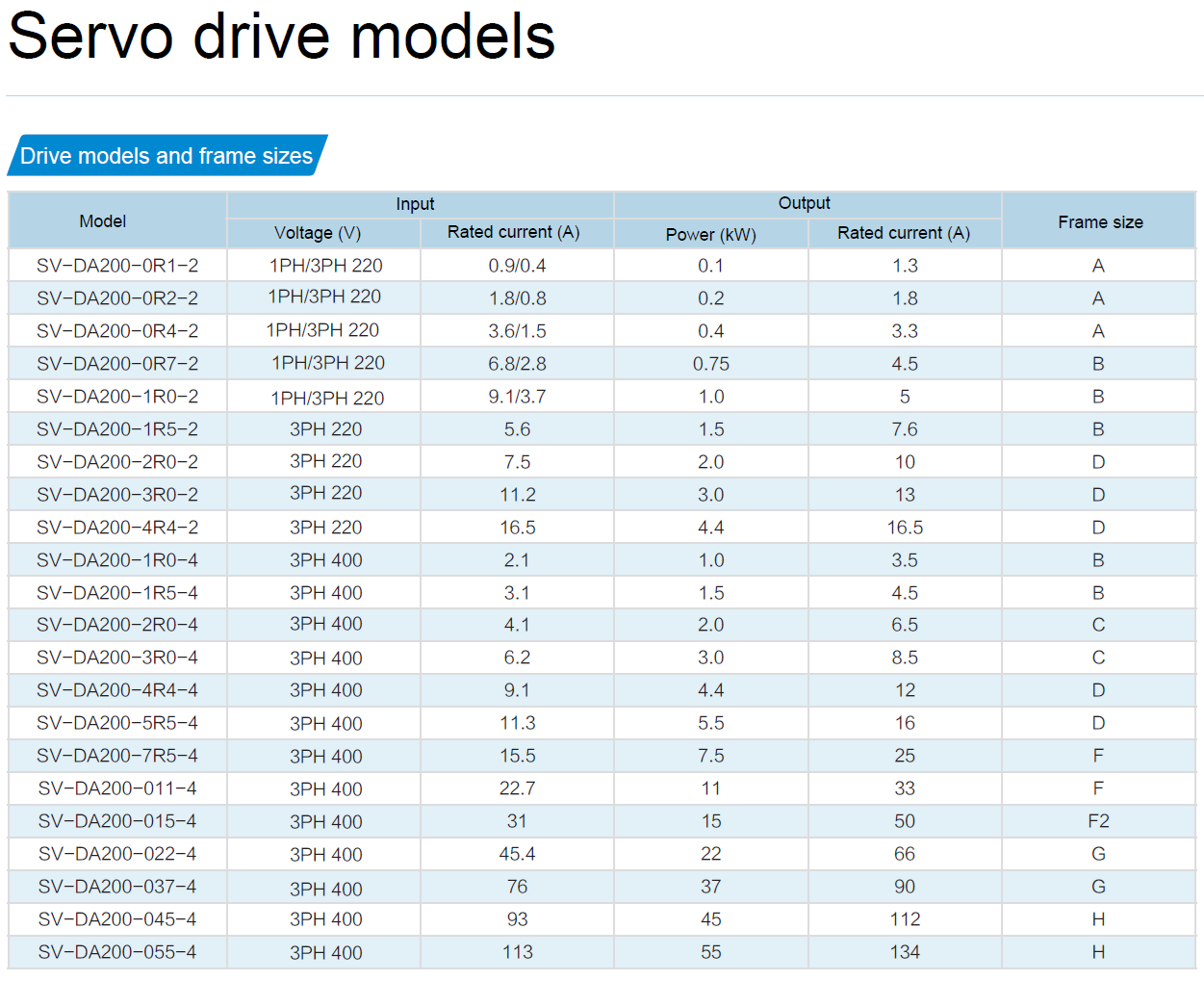

Power ratings:
Encoder types: 2500 PPM standard

IP level: 20

Download INVT DA200 Servo system Catalog V3.8
