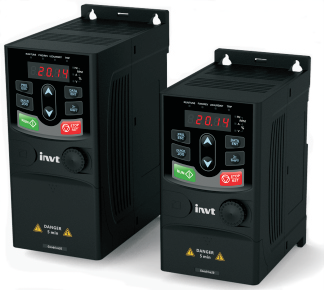

GD20 S2-EU VFD series 0.4 t/m 2.2 kW 230VAC
INVT Goodrive20 Frequentieregelaar 230VAC
Multi purpose VFD V/F - SVC control.
Input supply voltage AC 1/3PH 230VAC +/- 15% 50/60 Hz
Output: AC 3PH 0V--UinVac 000-400Hz.
Output power kW: S2 0,4 up to 2.2 kW
Output power kW: S up to 7.5 kW
Standard Operator LED Keypad
Digital Inputs and outputs.,
RS485 communication port. Modbus RTU.

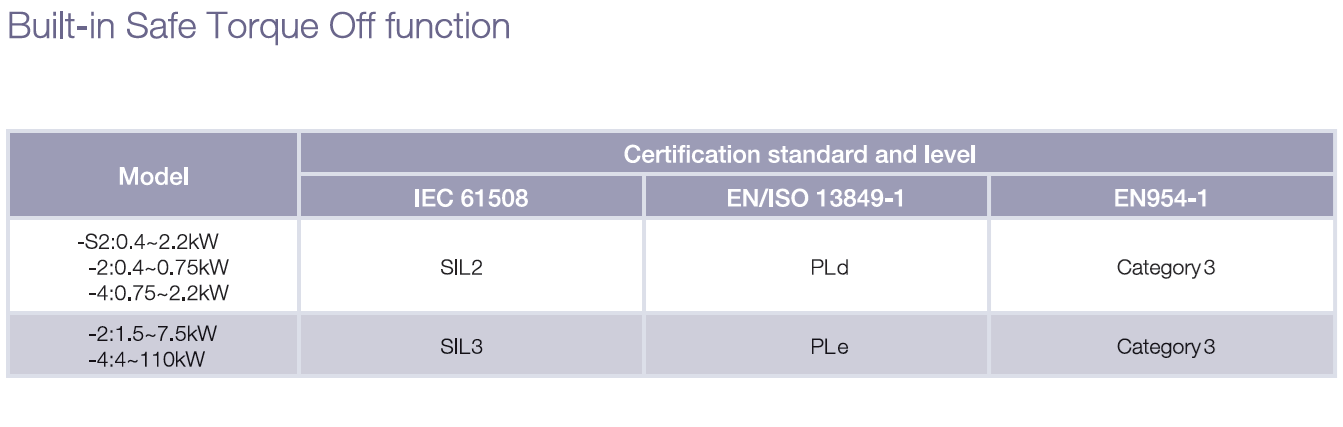

EU Model Supports STO input.
Enclosure: IP20
Build in brake unit.
Energy effiecency IE2 2023
Certification: CE UK/CA TÜV-SUD
IEC national standards Tüv and Rohs.
