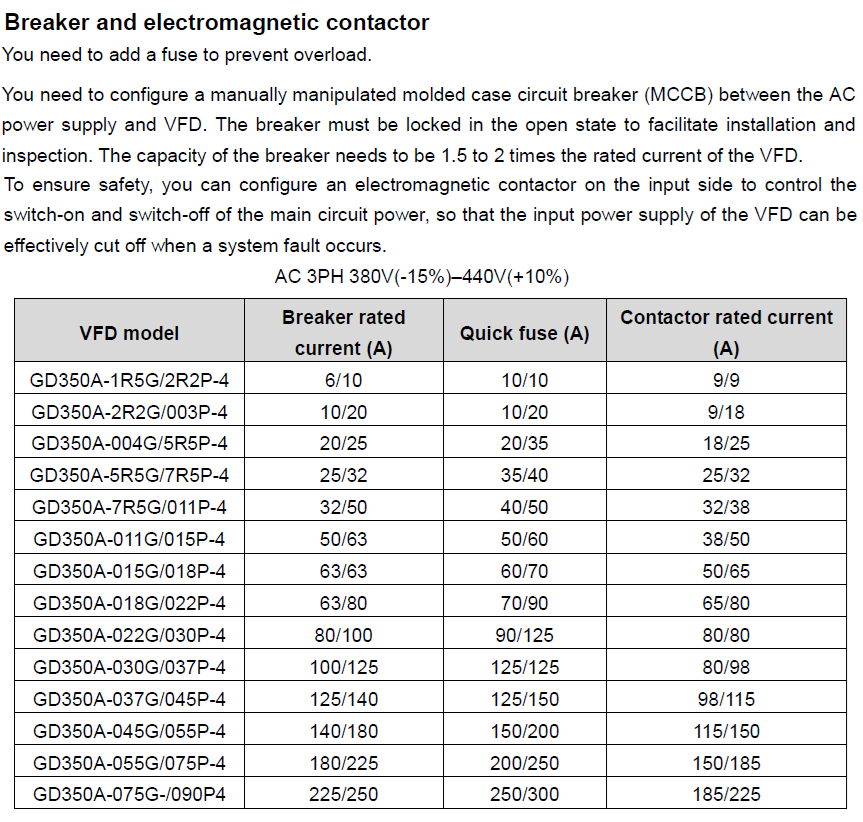

INVT VFD model GD20/ GD200A /350A
Common Parameters groep 0.

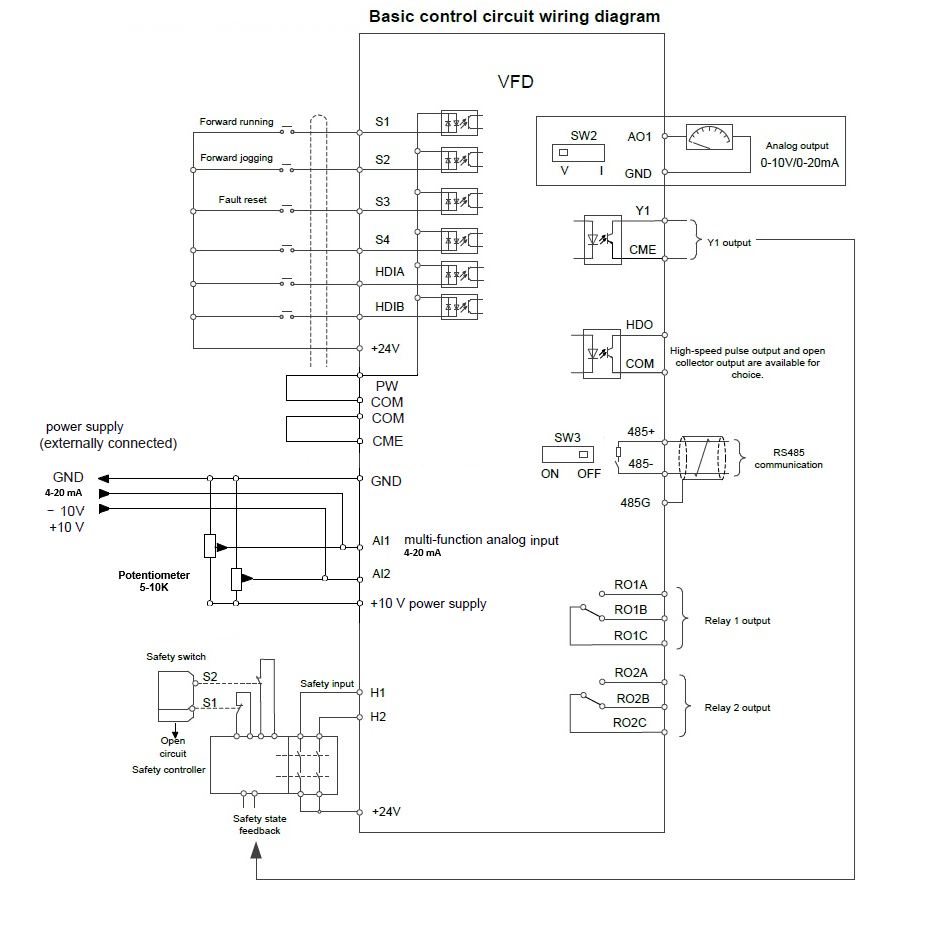

Start signal Local Remote.
P00.01 = 0 ( keypad run button) Local led blinks
1 ( Terminal control S1) Remote led blinks
P00.03 = F max setting Default 50,00 hz.
P00.04= F Max Setpoint Hz. Default 50,00 hz.
P00.05= F Min Setpoint Hz. Default 00,00 hz.
Freqeuentie setpoint source A
P00.06= 0 ( keypad ) Parameter P00,10 = default 50 hz.
1 ( Potentiometer Keypad )
2 ( AI1 / AI2
6 ( Multistep speed control)
set P5 input S2 S3 S4 code 16-17-18 Multistep input setting P10.02 / P10.04 /P10.06 / P10.08
7 ( PID ) and then set Parameter group P9, Pid settings.
Acceleration and Deceleration settings
P00.11= Acc time 1 Default 20.00 Sec.
P00.12= Dec Time1 Default 20.00 Sec.
P00.018 = Reset to Factory settings.
