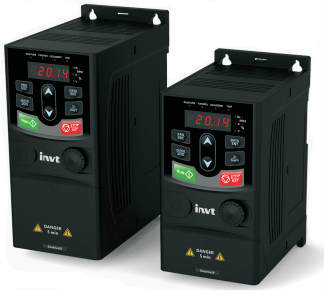

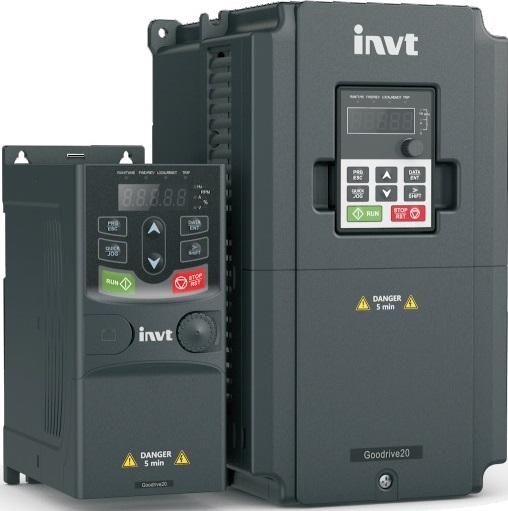

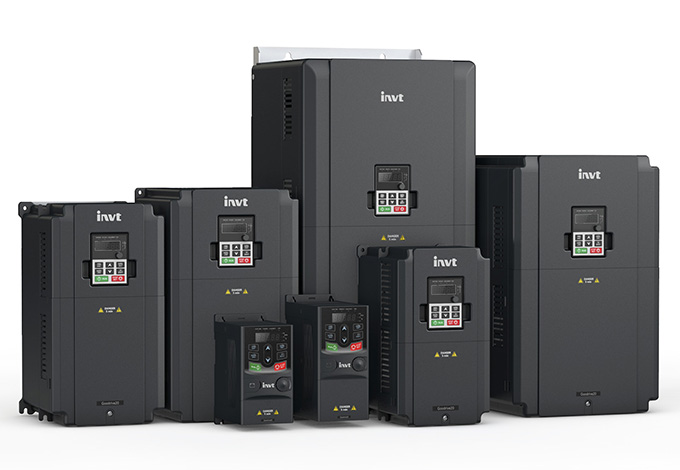

GD20 Inverter VFD Series
INVT Goodrive20 Low voltage frequency drives.
Multi purpose VFD V/F - SVC control.

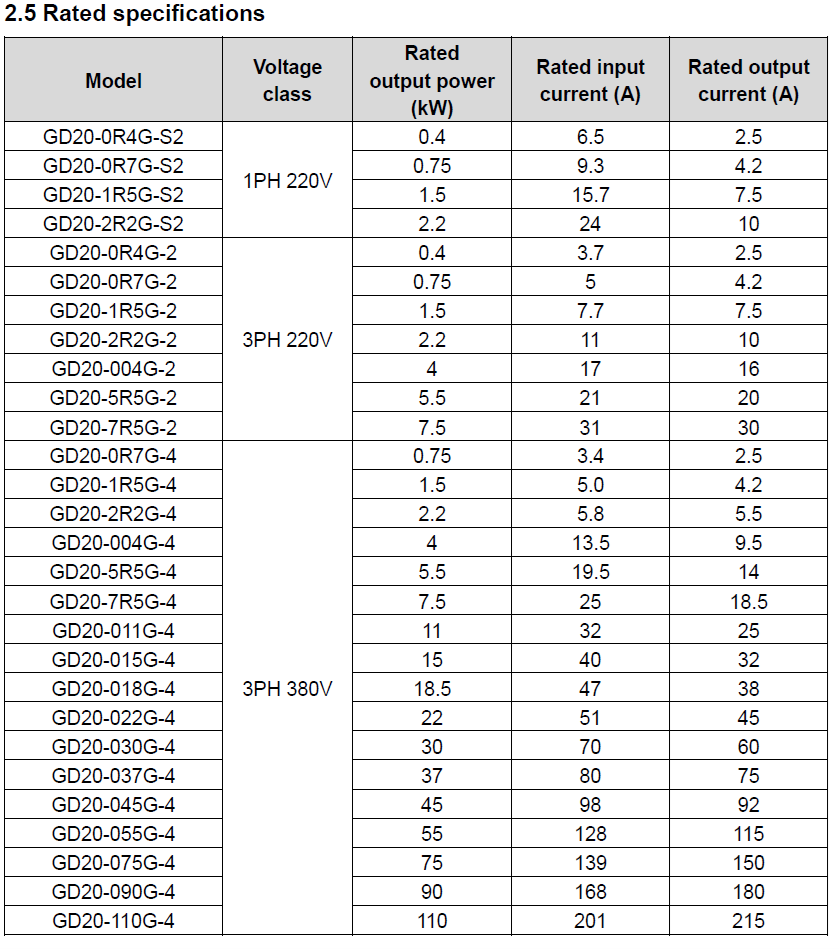

Power rating: 0.4 up to 110 kW
Supply voltage model S2: AC 1PH 200-230VAC +/-15% 50/60 Hz
Supply voltage model 2: AC 3PH 200-230VAC +/-15% 50/60 Hz
Supply voltage model 4: AC 3PH 380-440Vac +/- 15% 50/60 Hz
Output: AC 3PH 0V--Uin 000-400Hz.
Standard LED Keypad
Digital Programmable Inputs and Outputs.
RS485 communication port. Modbus RTU.

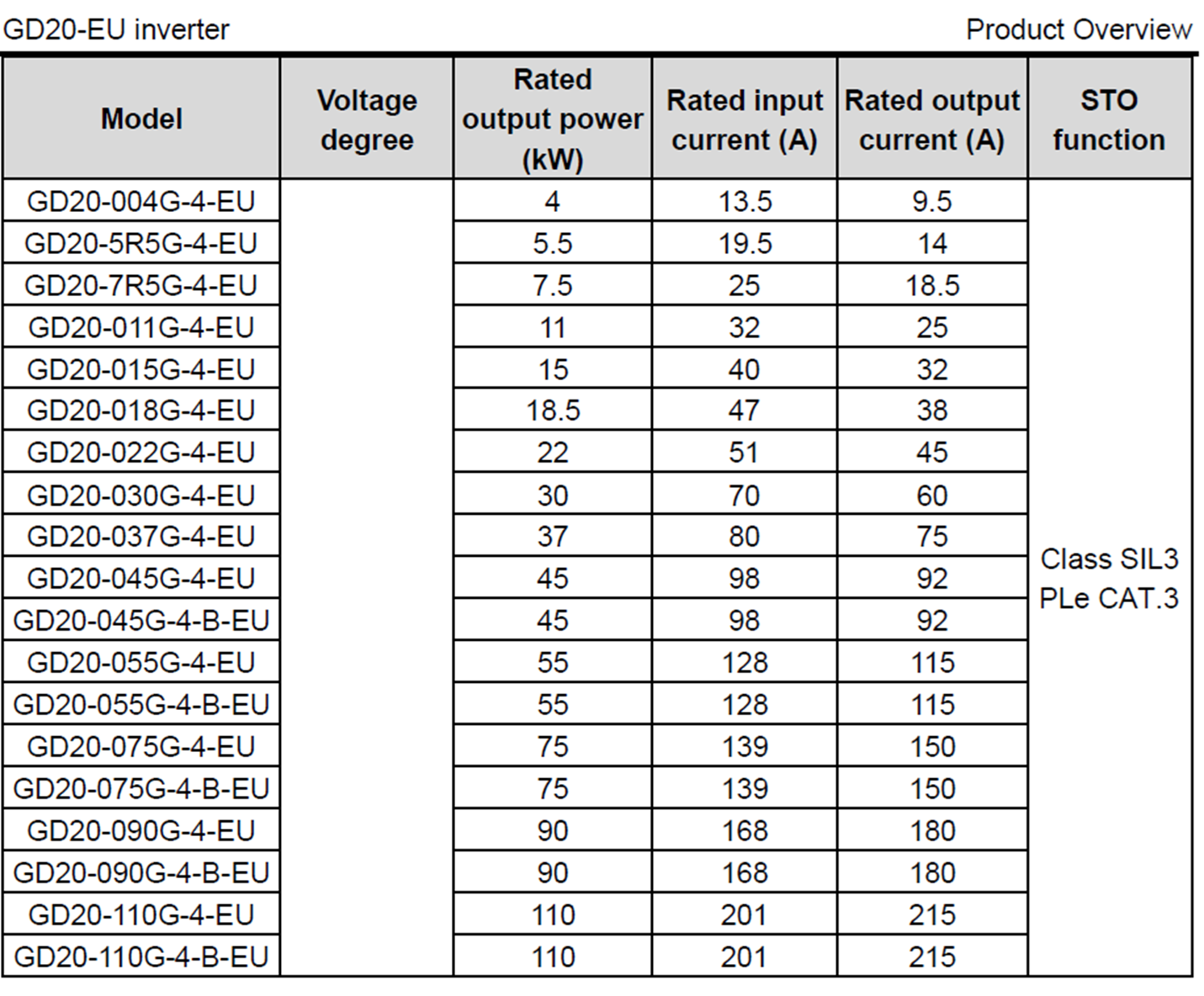

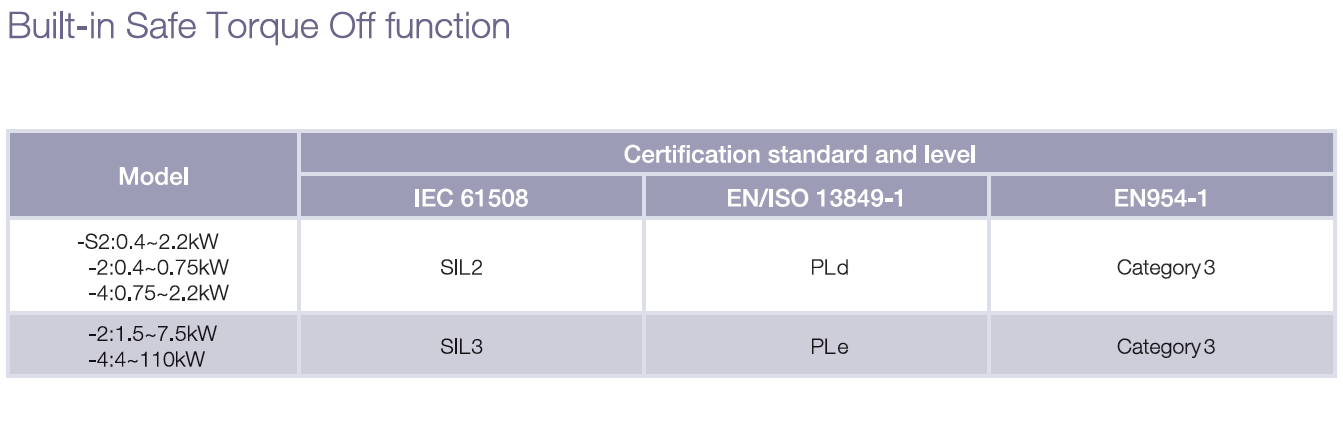

EU Model Supports STO input.
Enclosure: IP20
Build in brake chopper up to 37kW units
Energy effieciency IE2 2023
Certification: CE UK/CA TÜV-SUD
IEC national standards
Rohs compliant
