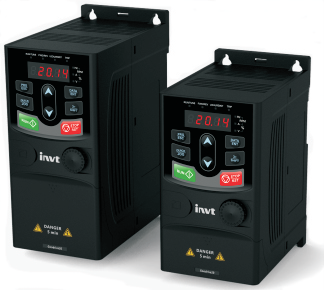

GD20 S2 VFD series 0.4 t/m 2.2 kW 230VAC
INVT Goodrive20 EU Frequentieregelaar 230VAC
Multi purpose VFD V/F - SVC control.
Input supply voltage AC 1PH 230VAC +/- 15% 50/60 Hz
Output: AC 3PH 0V--UinVac 000-400Hz.
Output power kW: 0.4 up to 2.2 kW
Standard Operator LED Keypad
Digital Inputs and outputs.,
RS485 communication port. Modbus RTU.
EU Model Supports STO input.
Enclosure: IP20
Build in brake chopper up to 37kW units
Energy effiecency IE2 2023
Certification: CE UK/CA TÜV-SUD
Rohs compliant
