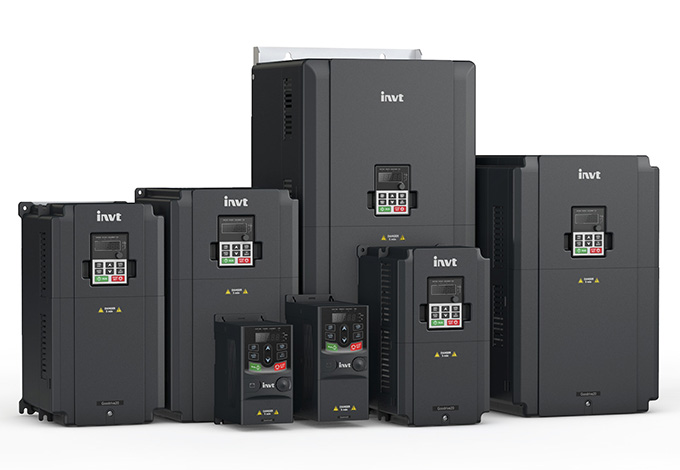

GD20 G4 VFD series 0,75 t/m 110 kW
INVT Goodrive20 Frequentieregelaar
Multi purpose VFD V/F - SVC control.
Input supply voltage AC 3PH 380-440VAC +/- 10% 50/60 Hz
Output: AC 3PH 0V--UinVac 000-400Hz.

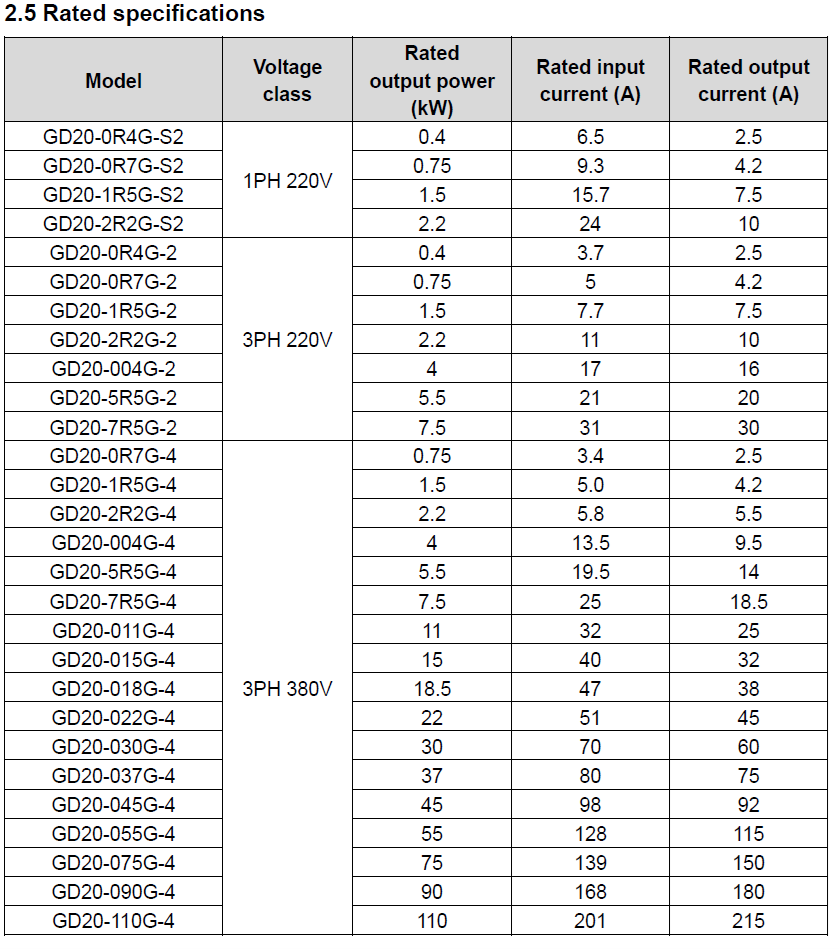

Output power kW: 0.75 up to 110 kW
Standard Operator LED Keypad
Digital Inputs and outputs.,
RS485 communication port. Modbus RTU.
Enclosure: IP20
Build in brake chopper up to 37kW units
Energy effiecency IE2 2023
Certification: CE UK/CA TÜV-SUD
IEC national standards Tüv and Rohs.
