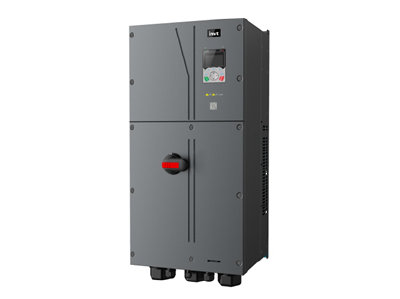

INVT IP55 Frequentieregelaar 75 kW 3PH400VAC

GD350A-075G-090P-45-AS VFD heavy Load 150A Normal load 180A

Industrie prijs € 9870,-

Artikelcode: GD350-075G-090P-45

INVT IP55 75 kW Multi purpose dual rating frequentieregelaar.

Goodrive: 350 HVAC Series

Protection degree: IP55

Type: GD350-075G-090P-45-AS

Input: 3PH 380-+/- 15% 440Vac +/- 10% 48/63 Hz

Output AC 3PH 0-UinVac 000-400 Hz.

Output heavy load: 150A

OUtput normal load:180A

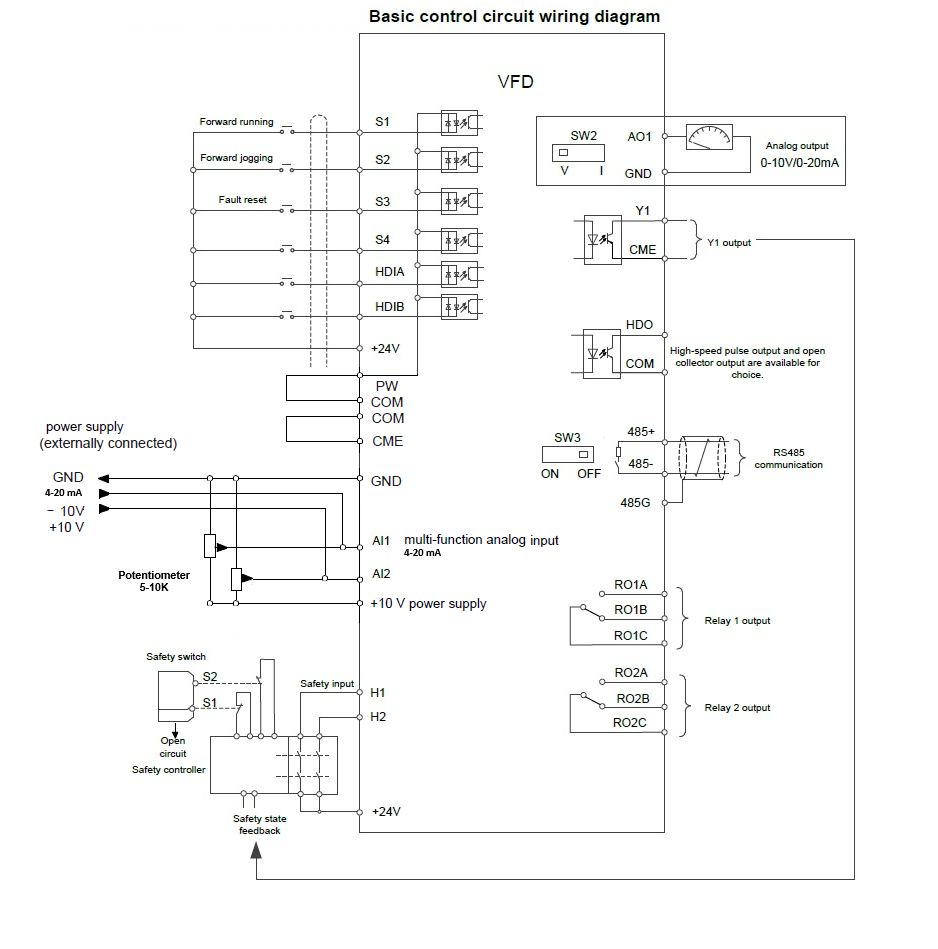

Control terminal with programmable functions.

Digital Inputs: S1 / S4

Digital High speed inputs: HDIA / HDIB. 50 khz. can be used for encoder speed feedback function

Digital Outputs: Y1 - HDO terminal

Analog Inputs: 2* AI1 - AI2 0-10V/4-20mA

Analog Output: 1* AO1 0-10V/4-20mA

Relay Outputs: RO1 / R02

Motor control function: Asynchroon and Sychroon PM motors

Speed control VC/ VF/ SVPWM

Torgue control

HVAC PID control

PLC or Multispeed-step control.

EMC filter C3 EN61800-3

Support STO function.

Graphic LCD Keypad. (Multi language with backup and copy function)

Expansion option slots: 2

Communication protocol: Profinet - Canbus - Profibus - Ethernet TCP-IP

Energy efficiency: IE2-2024

Certifications CE, UK/CA TUV-SUD

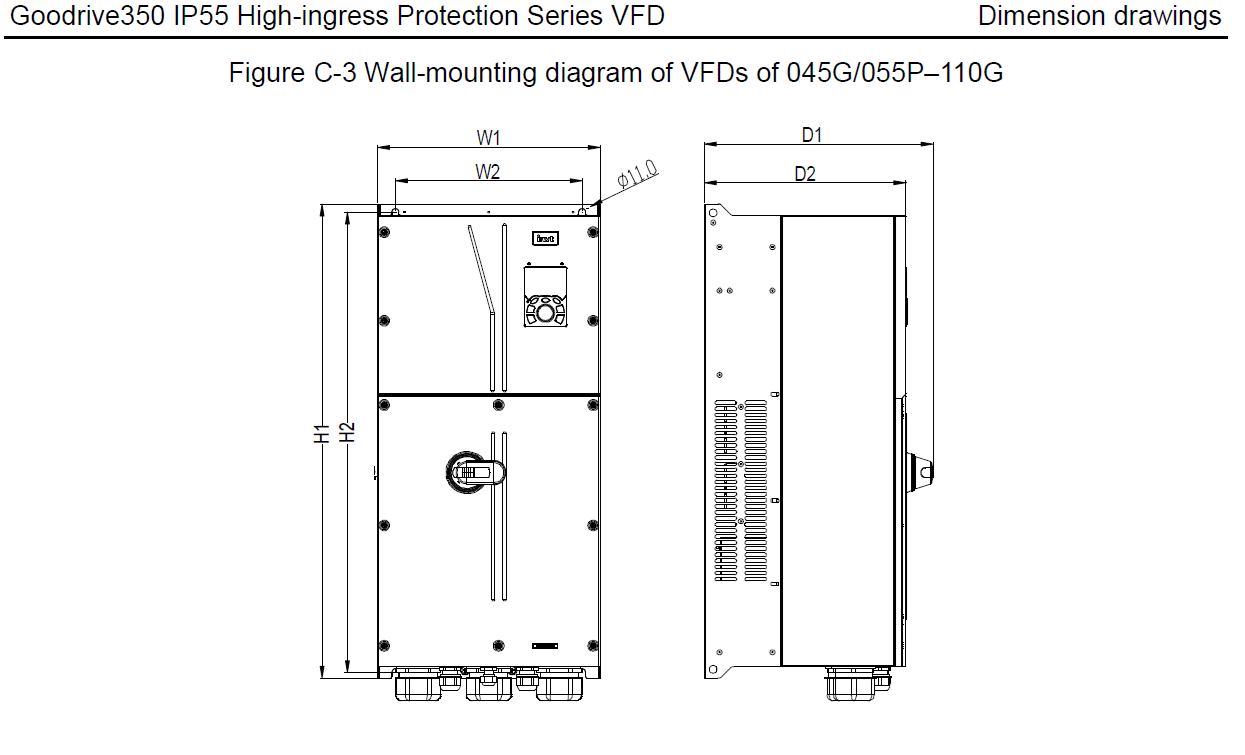

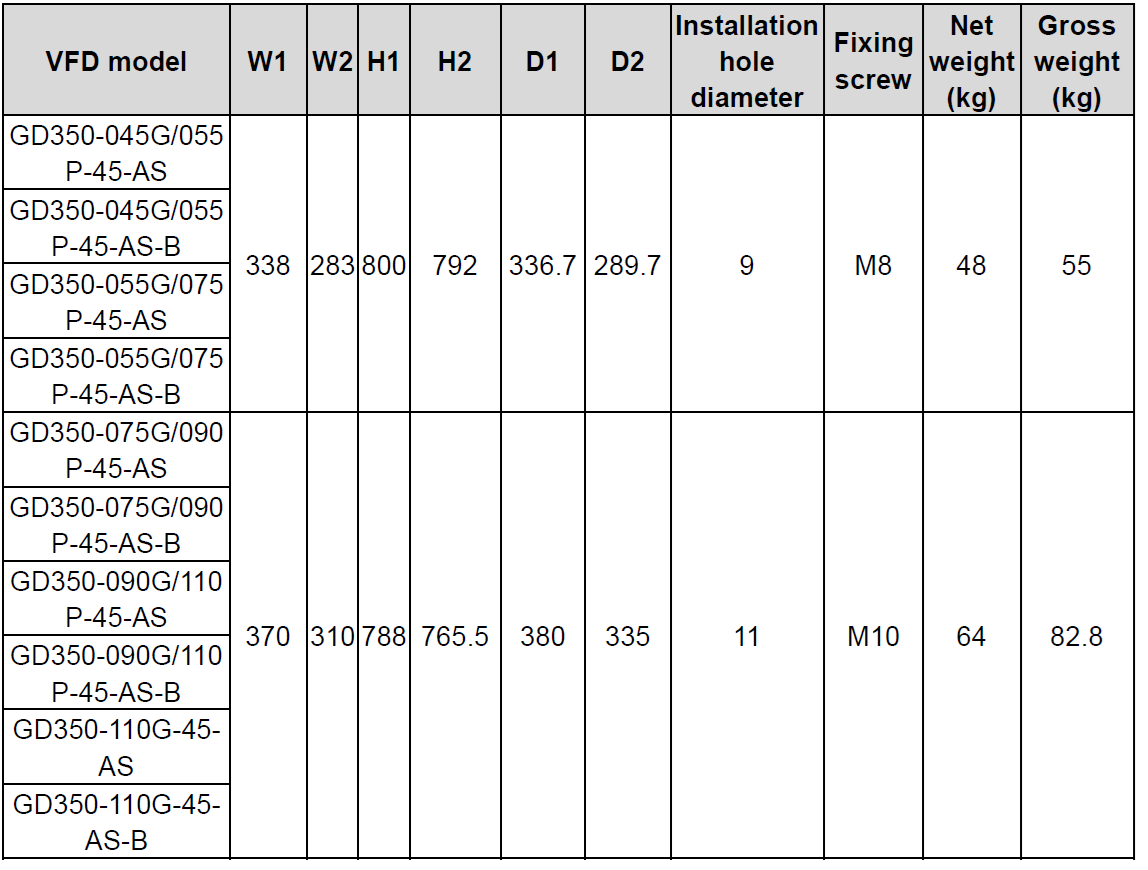

Afmetingen: HXBXD 800x370x380mm D=dept with AC Mainswitch

Gross Weight: 85 Kg

AC Inverter

EAN 8504408890

Rohs. Compliant
