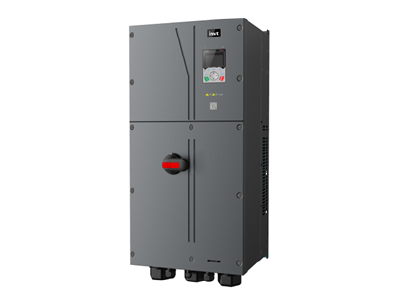

INVT IP55 Frequentieregelaar 37 kW 3PH400VAC

GD350A-037G-045P-45-AS VFD heavy Load 75A Normal load 90A

INVT IP55 Frequentieregelaar 37 kW  3PH400VAC
Industrie prijs € 5210,-
ArtikelcodeGD350-037G-045P-45
INVT IP55 37 kW Multi purpose dual rating frequentieregelaar.
Goodrive: 350 HVAC Series
Protection degree: IP55
Type: GD350-037G-045P-45-AS
Input:  3PH 380-+/- 15% 440Vac +/- 10% 48/63 Hz
Output AC 3PH  0-UinVac 000-400 Hz.
Output heavy load:  75A
OUtput normal load:90A

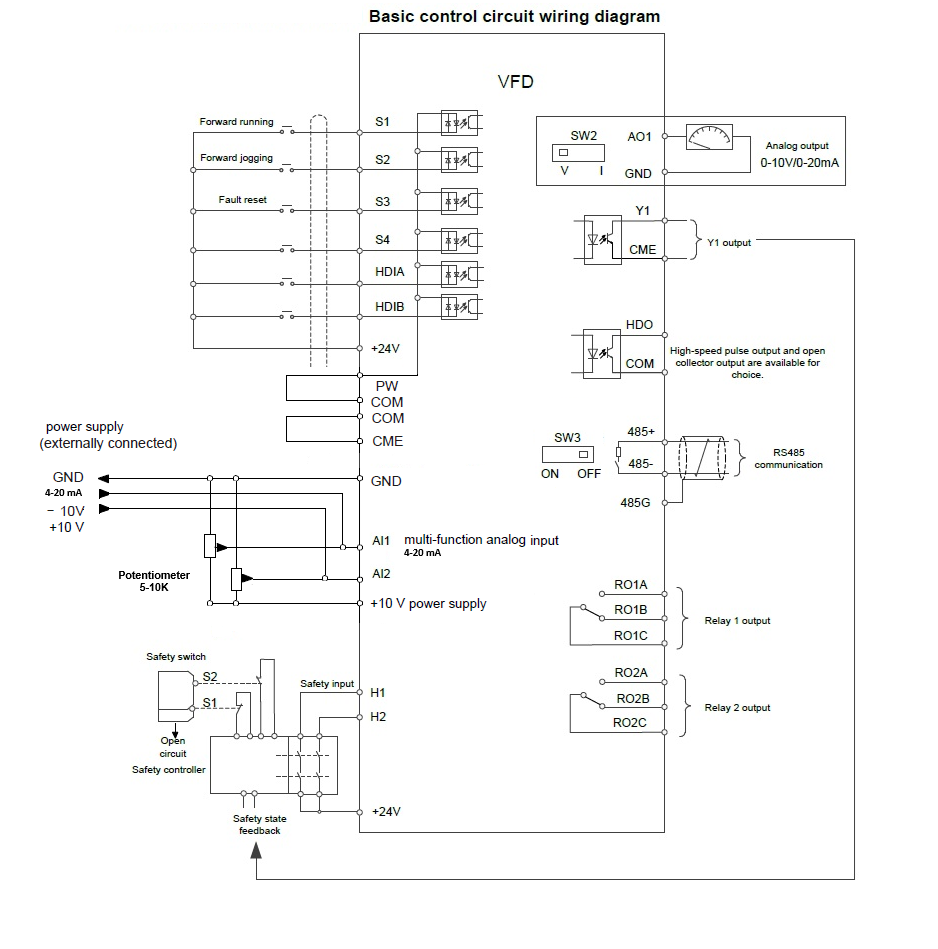

Control terminal with programmable functions.
Digital Inputs: S1 / S4
Digital High speed inputs: HDIA / HDIB. 50 khz. can be used for encoder speed feedback function
Digital Outputs: Y1 - HDO terminal
Analog Inputs: 2* AI1 - AI2  0-10V/4-20mA
Analog Output: 1* AO1  0-10V/4-20mA
Relay  Outputs: RO1  / R02
Motor control function: Asynchroon and Sychroon PM motors
Speed control VC/ VF/ SVPWM
Torgue control
HVAC PID control
PLC or Multispeed-step control.
EMC filter C3 EN61800-3
Support STO function.
Graphic LCD Keypad. (Multi language with backup and copy function)
Expansion option slots: 2
Communication protocol: Profinet - Canbus - Profibus - Ethernet TCP-IP
Energy efficiency: IE2-2024
Certifications CE, UK/CA  TUV-SUD

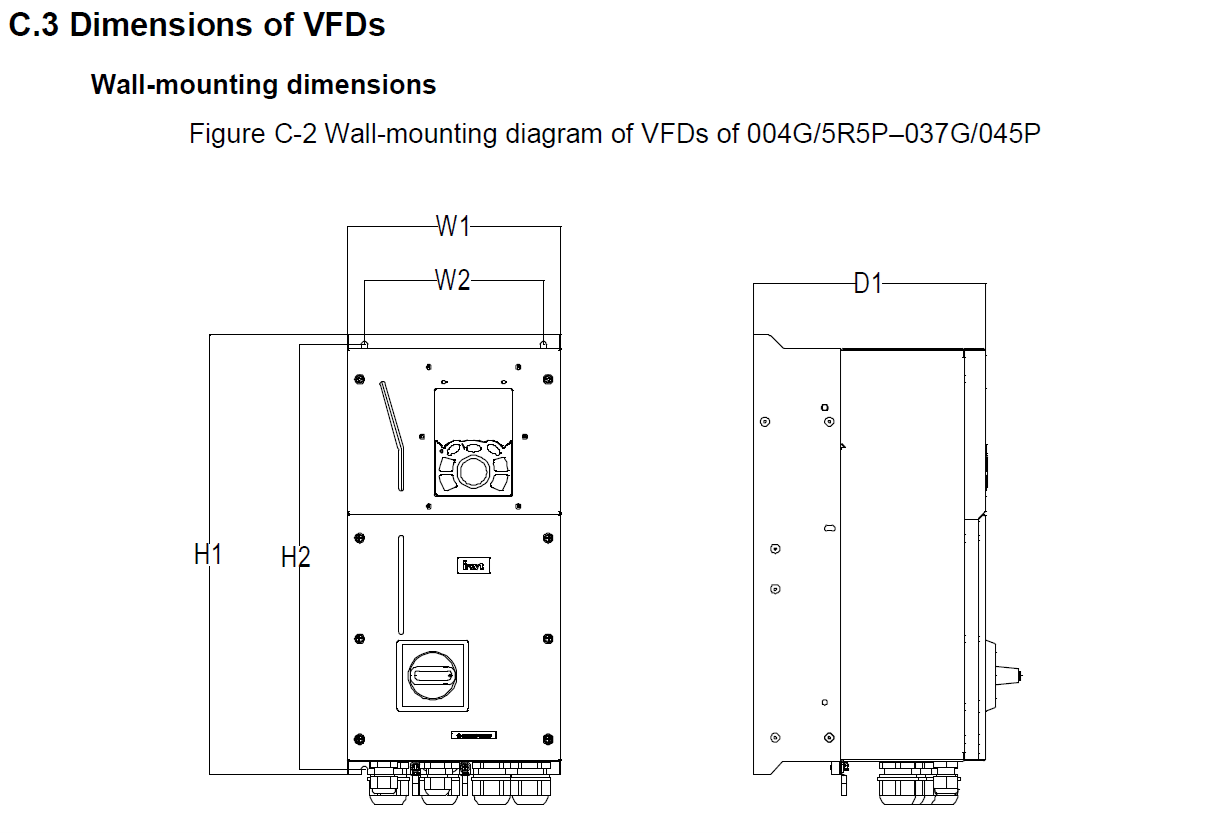

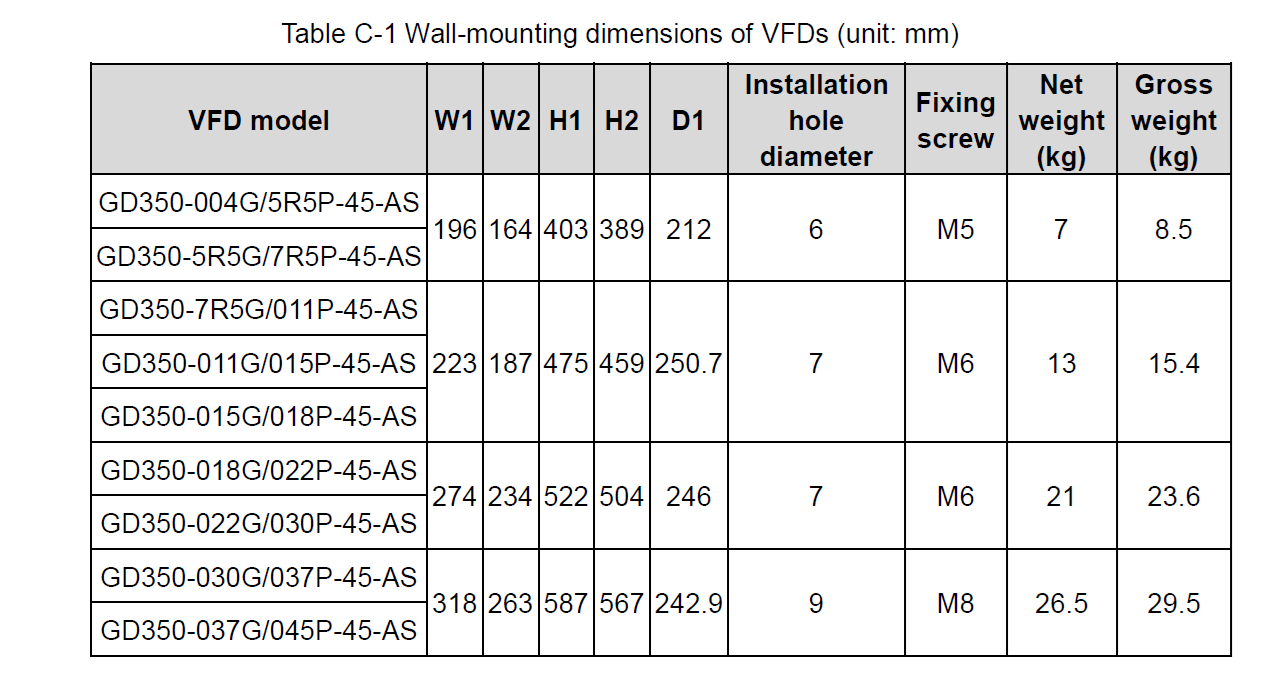

Afmetingen: HXBXD 522x318x290mm D=dept with AC Mainswitch
Gross Weight: 32 Kg
AC Inverter
EAN 8504408890
Rohs. Compliant
