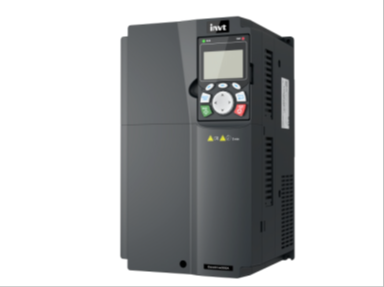

INVT Frequentieregelaar 7.5 kW 3PH400VAC

GD350A-7R5G-011P-4 VFD heavy Load 17A Normal load 24A

Industrie Prijs € 847,-

Artikelcode: GD350A-7R5G-011P-4

INVT Multi purpose dual rating frequentieregelaar.

Goodrive: 350A Series

Multi purpose VFD Inverter Suitable for AC and PM motor.

GD350A-7R5G-011P-4

Input: 3PH 380-+/- 15% 440Vac +/- 10% 50/60 Hz

Output AC 3PH 0-UinVac 000-400 Hz.

Output heavy load: 17A

Output normal load:24A

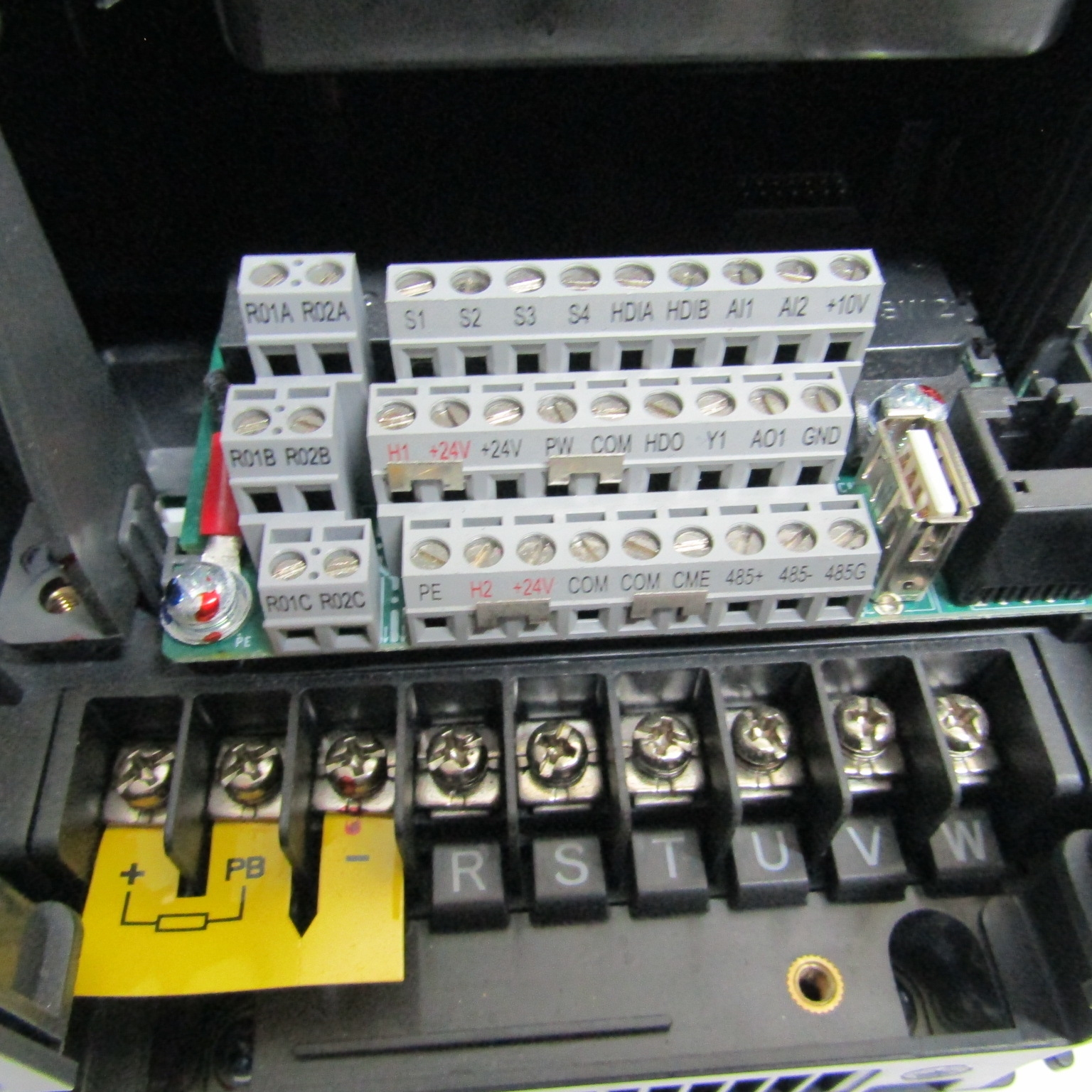

Control terminal with programmable functions.

Digital Inputs: S1 / S4

Digital High speed inputs: HDIA / HDIB. 50 khz. can be used for encoder speed feedback function

Digital Outputs: Y1 - HDO terminal

Analog Inputs: 2* AI1 - AI2 0-10V/4-20mA

Analog Output: 1* AO1 0-10V/4-20mA

Relay Outputs: RO1 / R02

Motor control function: Open or closed loop.

Speed control VC/ VF/ SVPWM /

Torgue control

HVAC PID control

PLC or Multispeed-step control.

Protection degree: IP20

EMC filter C3 EN61800-3

Support STO function.

Graphic LCD Keypad. (Multi language with backup and copy function)

Energy efficiency: IE2-2024

Certifications CE, UK/CA TUV-SUD

Communication protocol: Profinet - Canbus - Profibus - Ethernet TCP-IP

INVT Heavy duty VFD Series

Rohs. Compliant
