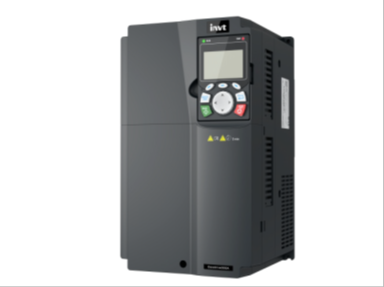

INVT Frequentieregelaar 22 kW 3PH400VAC

GD350A-022G-030P-4 VFD duty heavy Load 45A Normal load 60A

INVT Frequentieregelaar 22 kW 3PH400VAC
Industrie Prijs € 2437,-
ArtikelcodeGD350A-022G-030P-4
INVT Multi purpose dual rating frequentieregelaar.
Goodrive: 350A Series
VFD Inverter Suitable for Asynchroon and synchroon motors.
GD350A-022G-030P-4
Input:  3PH 380-+/- 15% 440Vac +/- 10% 50/60 Hz
Output AC 3PH  0-UinVac 000-400 Hz.
Output heavy load: 45A
Output normal load:60A

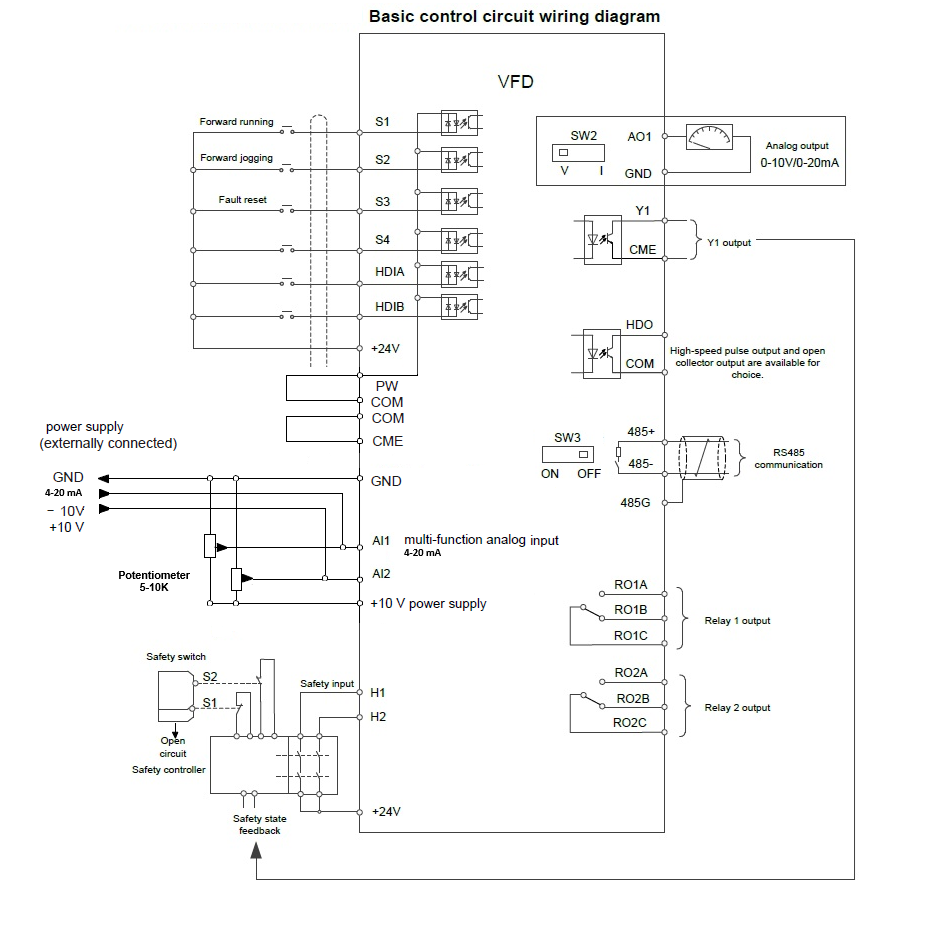

Control terminal with programmable functions.
Digital Inputs: S1 / S4
Digital High speed inputs:2* HDIA / HDIB. 50 khz. can be used for encoder speed feedback function
Digital Outputs: Y1 - HDO terminal
Analog Inputs: 2* AI1 - AI2  0-10V/4-20mA
Analog Output: 1* AO1  0-10V/4-20mA
Relay  Outputs: RO1  / R02
Motor control function:  Open or closed loop.
Speed control VC/ VF/ SVPWM /
Torgue control
HVAC PID control
PLC or Multispeed-step control.
Protection degree: IP20
EMC filter C3 EN61800-3
Support STO function.
Graphic LCD Keypad. (Multi language with backup and copy function)
Energy efficiency: IE2-2024
Certifications CE, UK/CA  TUV-SUD
Communication protocol: Profinet - Canbus - Profibus - Ethernet TCP-IP

Rohs. Compliant

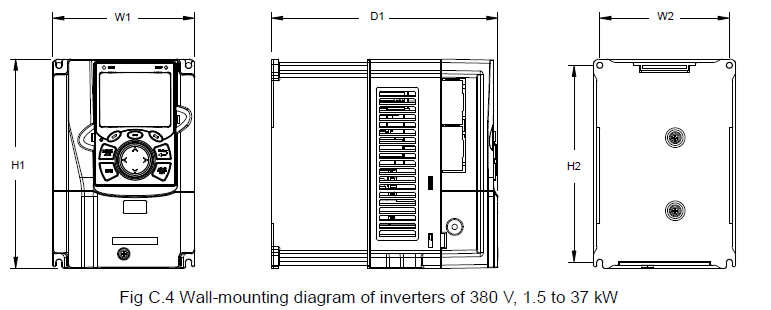

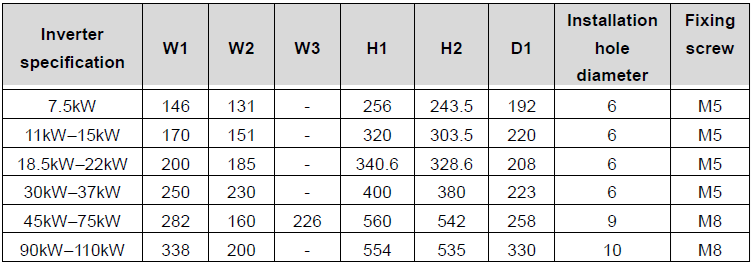

INVT GD350A frequentieregelaar afmetingen
