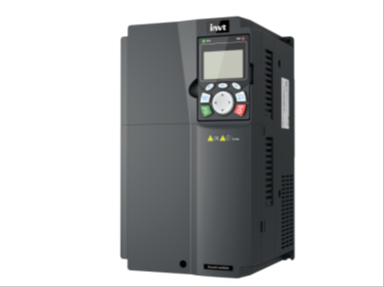

INVT Frequentieregelaar 2.2 kW 3PH400VAC

GD350A-2R2G-003P-4 5A heavy Load 7A Normal load

Industrie Prijs € 478,-

Artikelcode: GD350A-2R2G-003P-4

NVT Multi purpose dual rating frequentieregelaar.

Goodrive: 350A Series

Type: GD350A-2R2G-003P-4

VFD Inverter Suitable for Asynchroon and synchroon motor.

Input: 3PH 380-+/- 15% 440Vac +/- 10% 48/63 Hz

Output AC 3PH 0-UinVac 000-400 Hz.

Output heavy load: 5A

OUtput normal load:7A

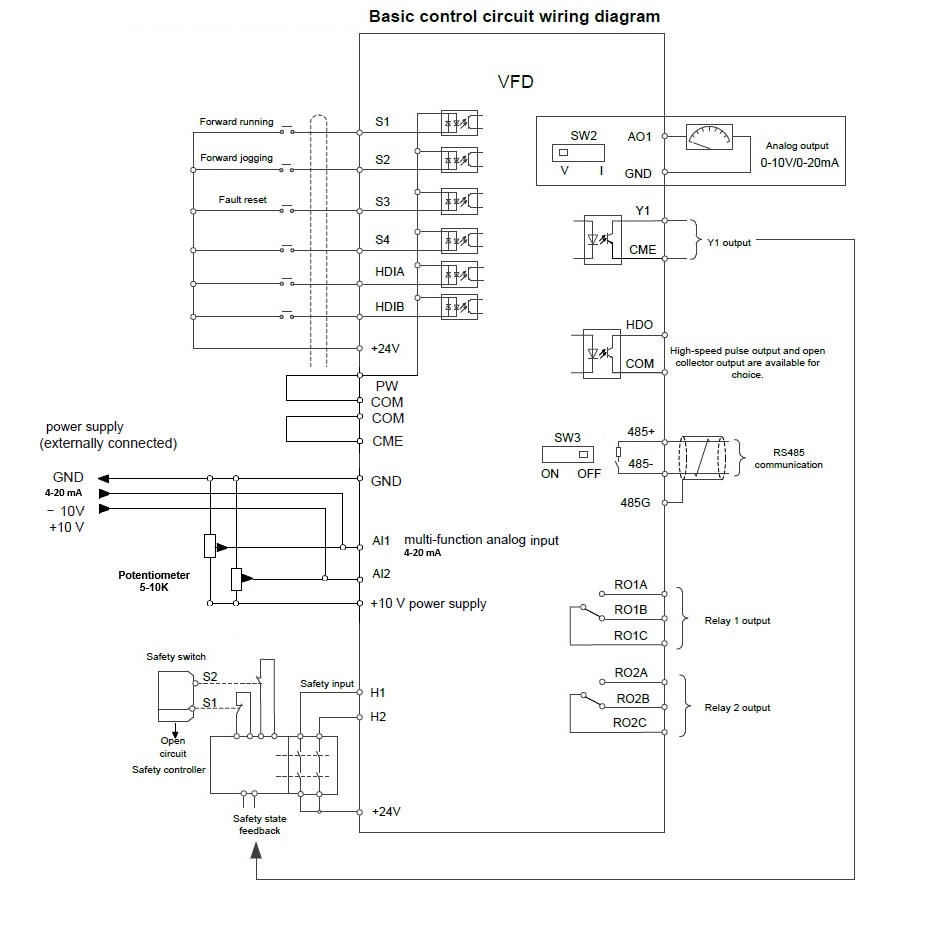

Control terminal with programmable functions.

Digital Inputs: S1 / S4

Digital High speed inputs: HDIA / HDIB. 50 khz. can be used for encoder speed feedback function

Digital Outputs: Y1 - HDO terminal

Analog Inputs: 2* AI1 - AI2 0-10V/4-20mA

Analog Output: 1* AO1 0-10V/4-20mA

Relay Outputs: RO1 / R02

Motor control function: Open or closed loop.

Speed control VC/ VF/ SVPWM /

Torgue control

HVAC PID control

PLC or Multispeed-step control.

Protection degree: IP20

EMC filter C3 EN61800-3

Support STO function.

Graphic LCD Keypad. (Multi language with backup and copy function)

Expansion option slots: 2

Communication protocol: Profinet - Canbus - Profibus - Ethernet TCP-IP

Energy efficiency: IE2-2024

Certifications CE, UK/CA TUV-SUD

AC Inverter

EAN 8504408490

Rohs. Compliant
