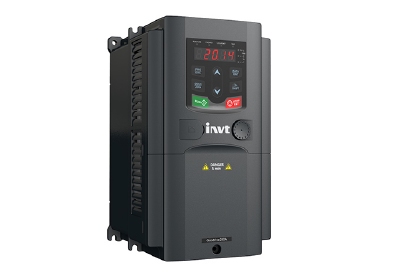

INVT Frequentieregelaar 5.5 kW 3PH400VAC

GD200A-5R5G-7R5P-4 VFD type Heavy Load 13A / Normal load 18A

Industrieprijs € 768,-

Artikelcode: GD200A-5R5G-7R5P-4

INVT Goodrive200A VFD Series

General purpose dual rating frequentieregelaar.

Sensorless vector and V/F control.

Model Name : GD200A-5R5G-7R5P-4

Input: AC 3Phase 380 +/- 15% - 440Vac +/- 10% 50/60 Hz

Output AC3: 0-Uin.VAC 0-400 Hz.

Output current: 13 A Heavy load

Output current: 18 A Normal load

Build in EMC filter C3 EN61800-3

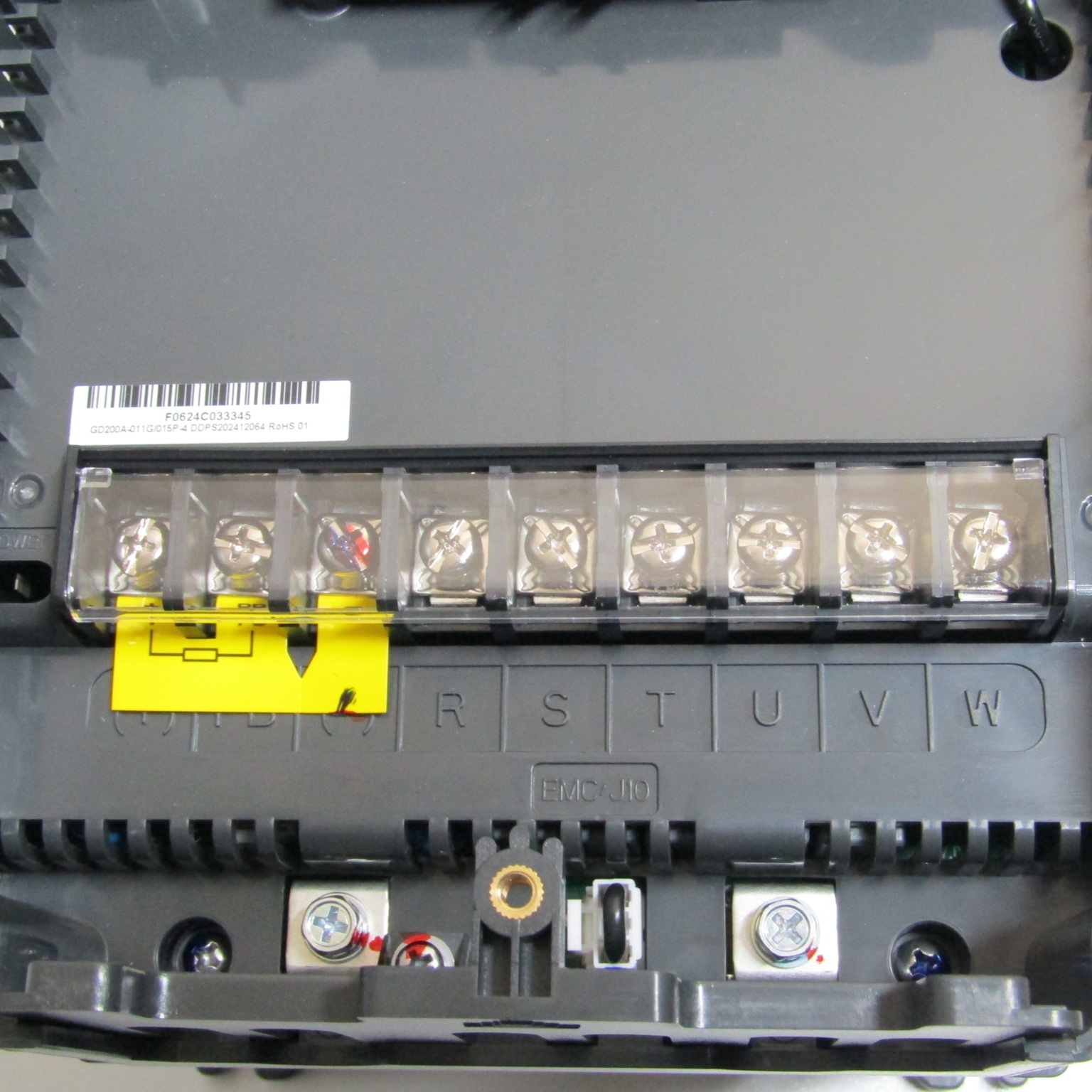

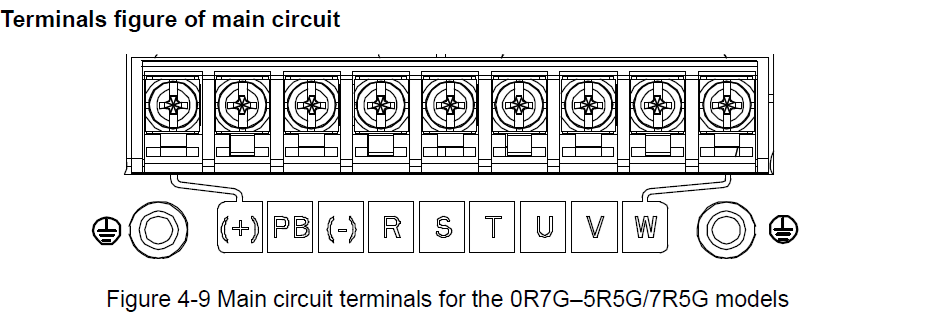

Build in Brake chopper: BR + terminal ( For connection of brake resistor)

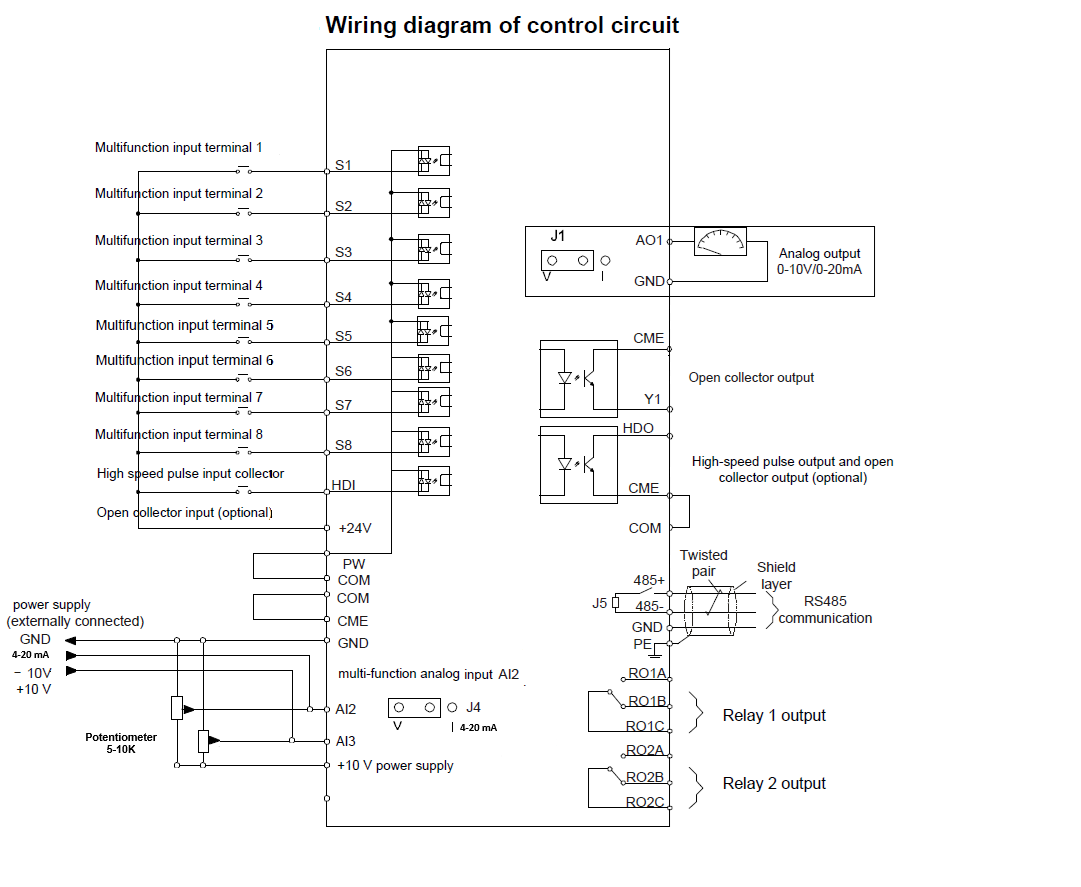

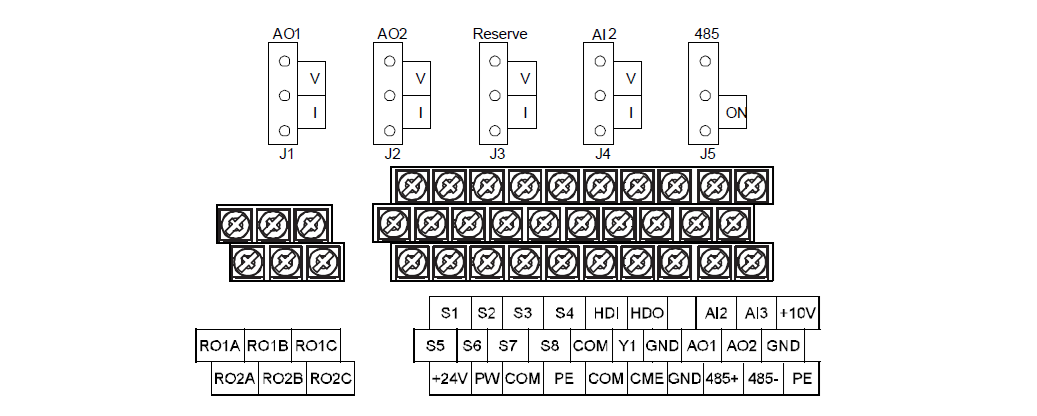

Control terminal with programmable control functions.

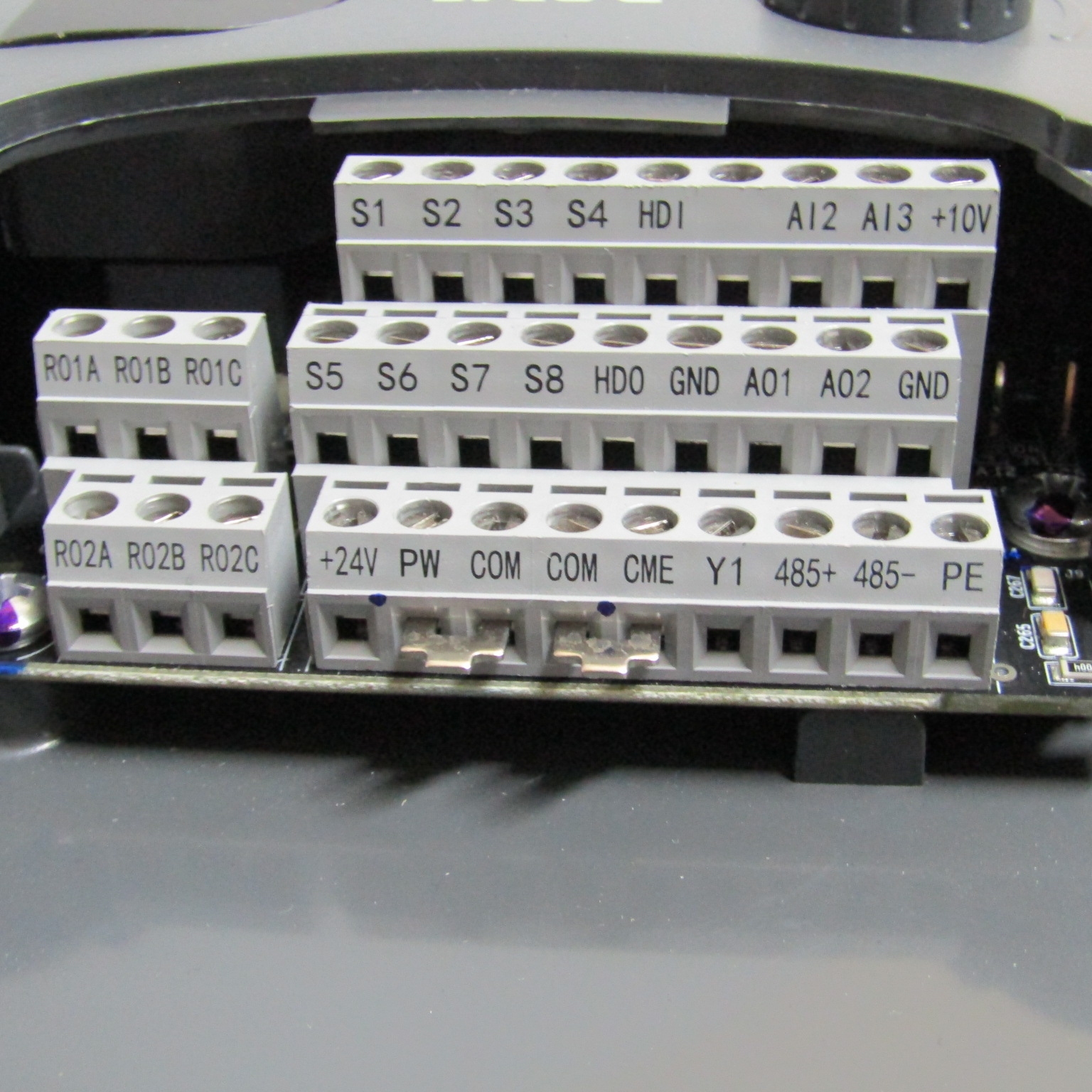

Digital Inputs: S1 / S8 + HDI.

Digital Outputs: Y1 - HDO terminal

Analog Inputs: 2*AI2 - AI3 0-10V/4-20mA

Analog Output: 1*AO1 0-10V/4-20mA

Relay Outputs: RO1 / R02

Control function: Speed control Torgue control HVAC PID control

PLC or Multispeed-step control.

Standard LED Operator panel in front

With external connection for LCD display. *(for parameter copy function)

Internal Fan cooling

Certification: CE., UK/CA

Rohs. Compliant
