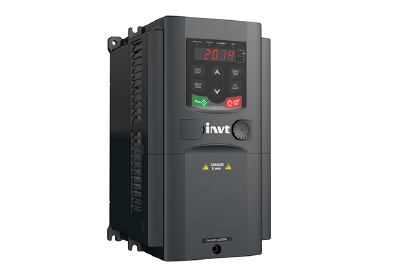

INVT Frequentieregelaar 18.5 kW 3PH400VAC

GD200A-018G-022P-4 heavy Load 38A / Normal load 45A

Industrieprijs € 1840,-

Artikelcode: GD200A-018G-022P-4

INVT Goodrive200A VFD Series

General purpose dual rating frequentieregelaar.

Sensorless vector and V/F control.

Model Name : GD200A-018G-022P-4

Input: AC 3Phase 380-400Vac +/- 15% 50/60 Hz

Output AC3: 0-Uin.VAC 0-400 Hz.

Output current:38 A Heavy load

Output current:45 A Normal load

Build in EMC filter C3 EN61800-3

Control terminal with programmabable inputs and outputs

Standard removable operator panel in front.

Internal Fan cooling

Build in braking unit up to 37 Kw units.

Product design follow Rohs.

IEC national standards and CE

Certification: CE., UK/CA
