INVT Frequentieregelaar 15 kW 3PH400VAC

GD200A-015G-018P-4 Heavy Load 30A / Normal load 38A

INVT Frequentieregelaar 15 kW 3PH400VAC
INVT Frequentieregelaar 15 kW 3PH400VAC
Industrie prijs € 1689,-
ArtikelcodeGD200A-015G-018P-4

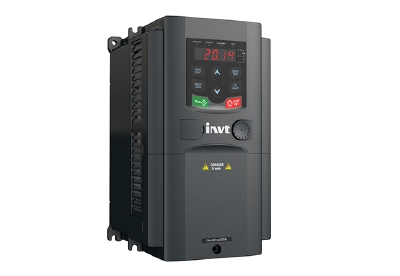

INVT Goodrive200A VFD Series
General purpose dual rating frequentieregelaar.
Sensorless vector and V/F control.
Model Name : GD200A-015G-018P-4
Input: AC 3Phase 380 +/- 15% - 440Vac +/- 10% 50/60 Hz
Output AC3: 0-Uin.VAC 0-400 Hz.
Output current: 32 A Heavy  load
Output current: 38 A Normal load
Build in EMC filter C3 EN61800-3

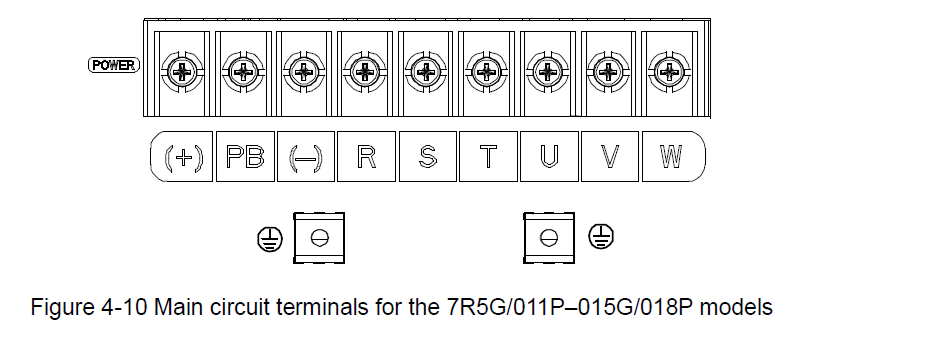

Build in Brake chopper: BR + terminal ( For connection of brake resistor)

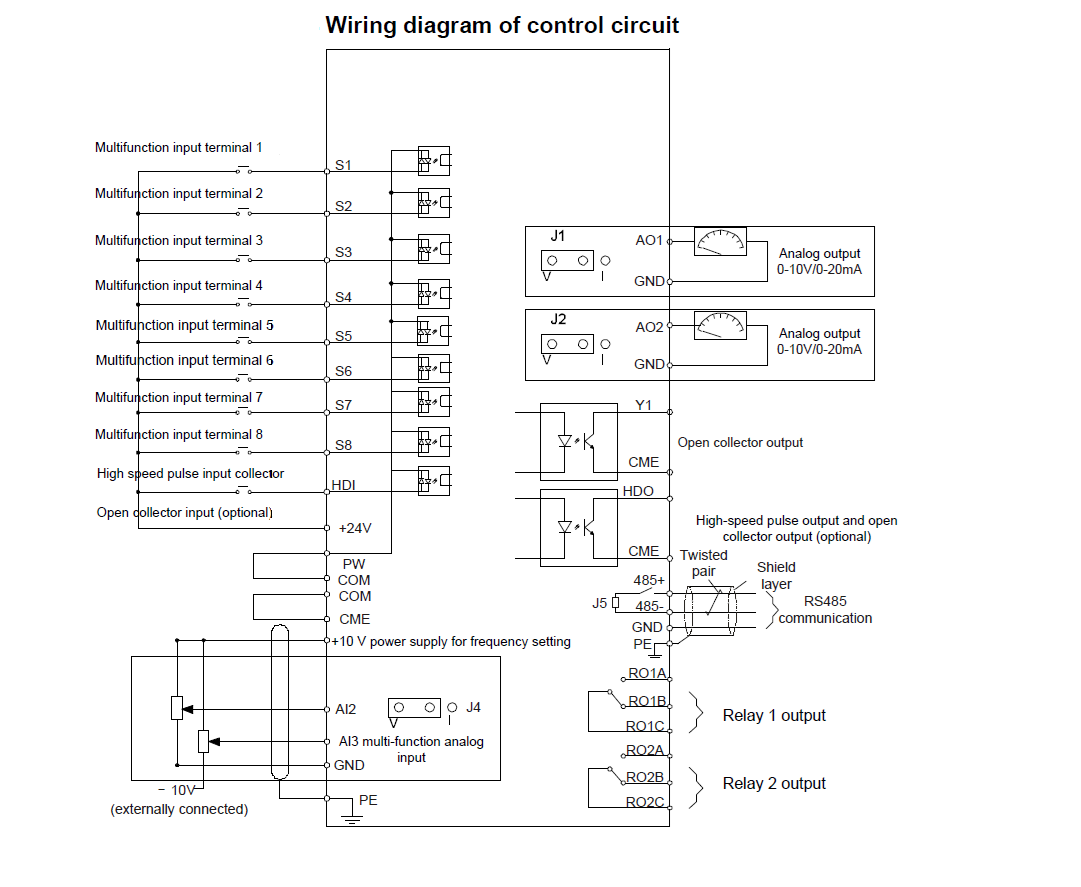

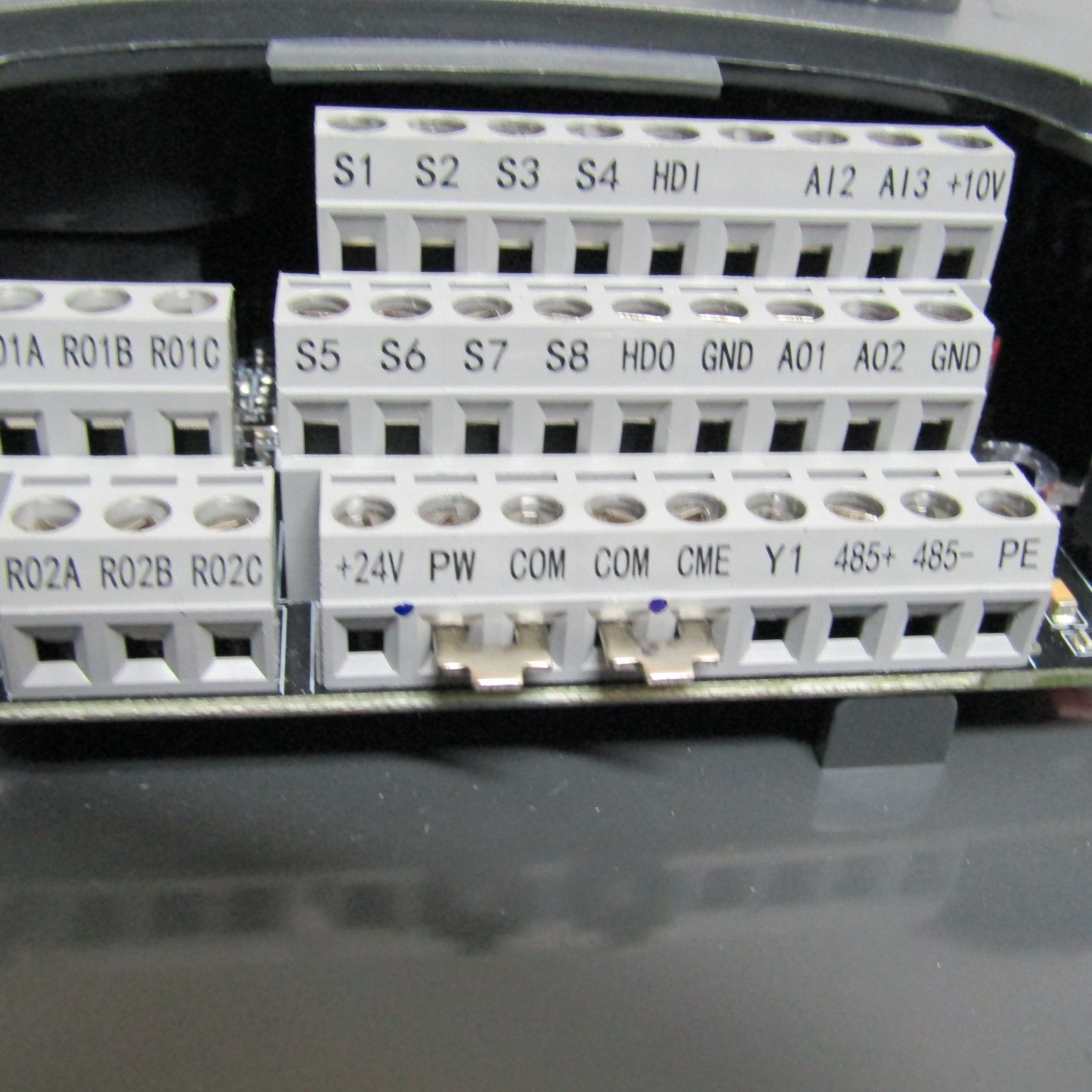

Control terminal with programmable control functions.
Digital Inputs: S1 / S8 + HDI.
Digital Outputs: Y1 - HDO terminal
Analog Inputs: 2*AI2 - AI3  0-10V/4-20mA
Analog Output: 1*AO1  0-10V/4-20mA
Relay  Outputs: RO1  / R02
Control function:  Speed control Torgue control HVAC PID control
PLC or Multispeed-step control.
Standard LED Operator panel in front
With external connection for LCD display. *(for parameter copy function)
Internal Fan cooling
Certification: CE., UK/CA
Rohs. Compliant
