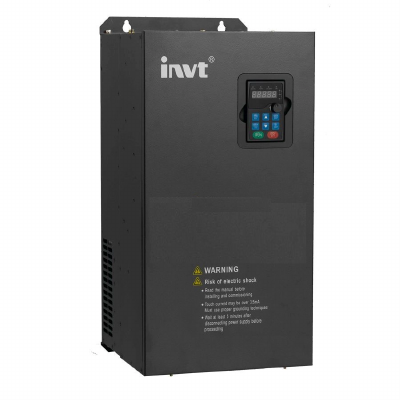

Industrial Heavy duty VFD Frequentie omvormer____37 kW 3PH400VAC

INVT Frequentieregelaar GD200A-037G-045P-4 heavy Load 75A / Normal load 90A

Industrie prijs € 3820,-

Artikelcode: GD200A-037G-045P-4

INVT Heavy duty VFD Series

General purpose dual rating frequentieregelaar.

Sensorless vector and V/F control.

Model Name : GD200A-037G-045P-4

Input: AC 3Phase 380 +/- 15% - 440Vac +/- 10% 50/60 Hz

Output AC3: 0-Uin.VAC 0-400 Hz.

Output current:75 A Heavy load

Output current:90 A Normal load

Build in EMC filter C3 EN61800-3

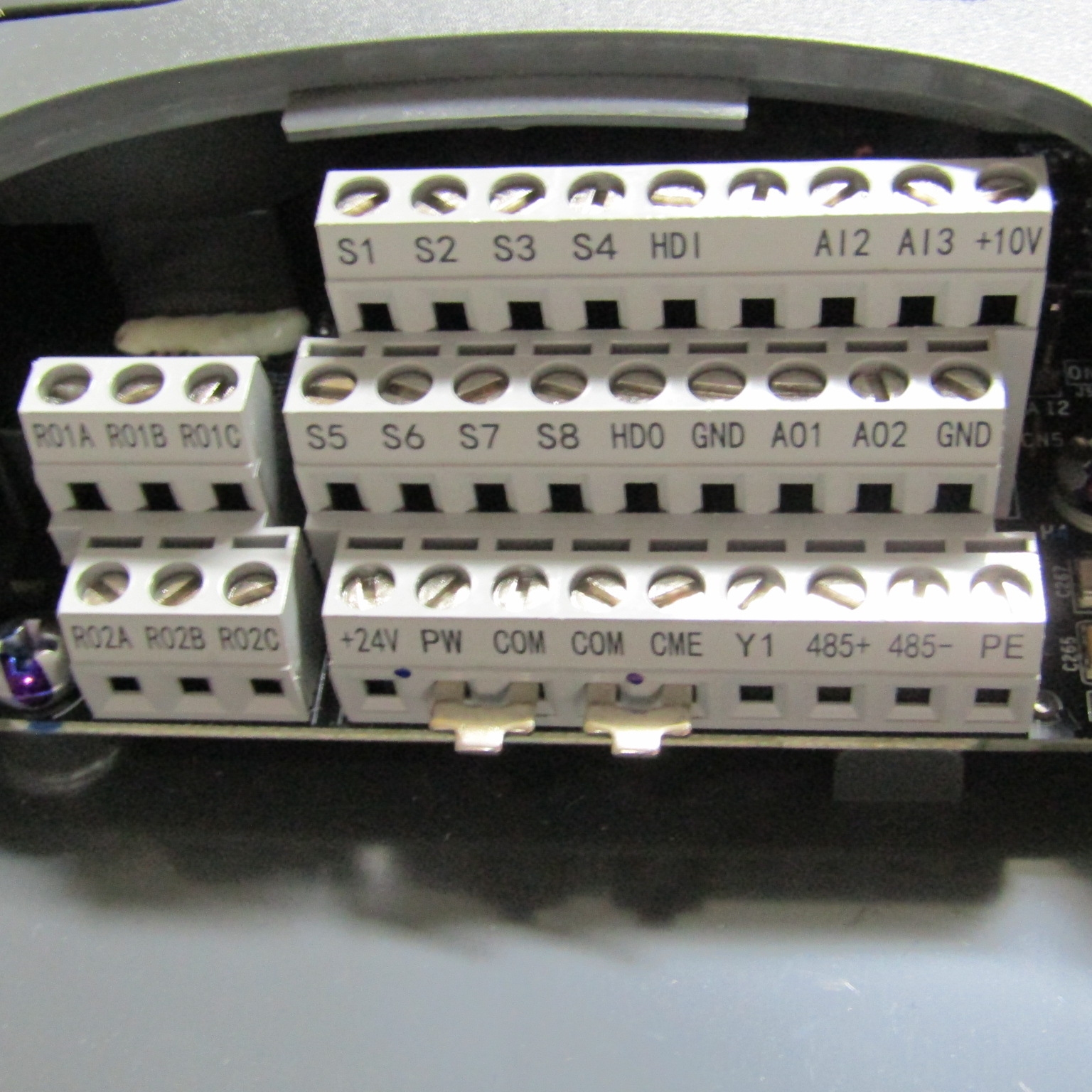

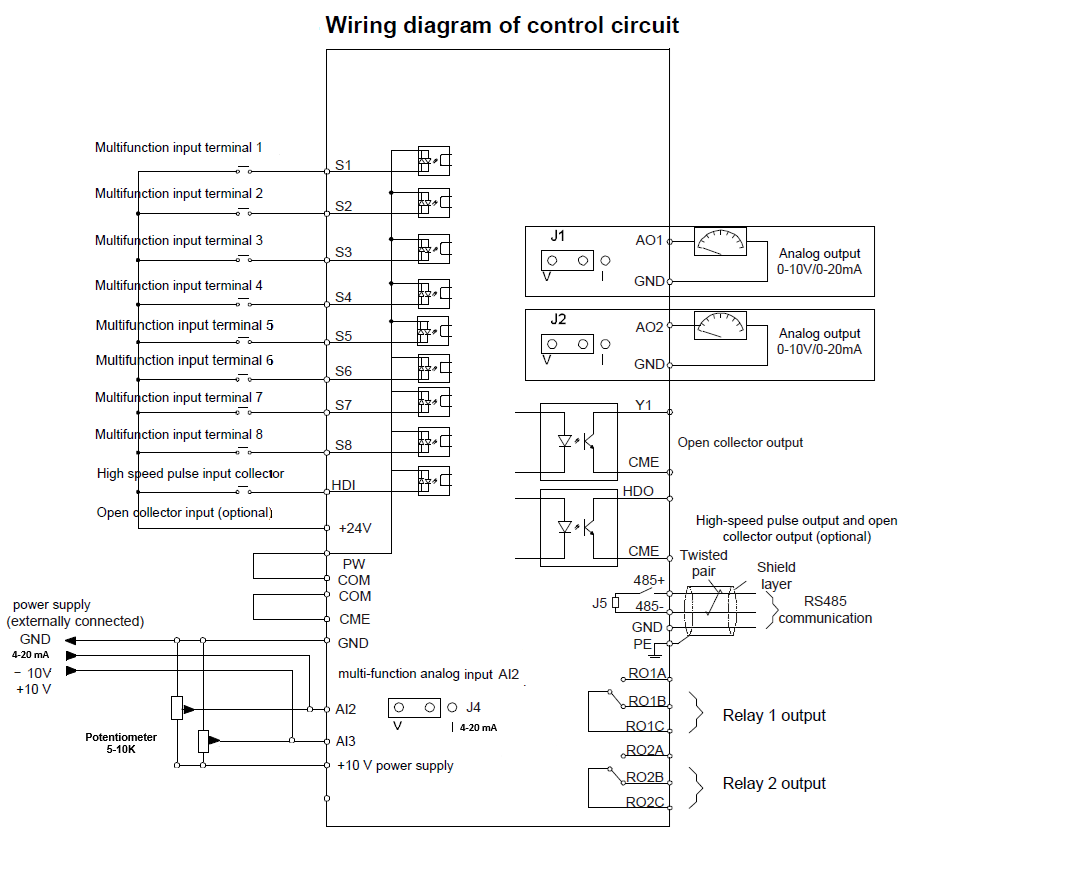

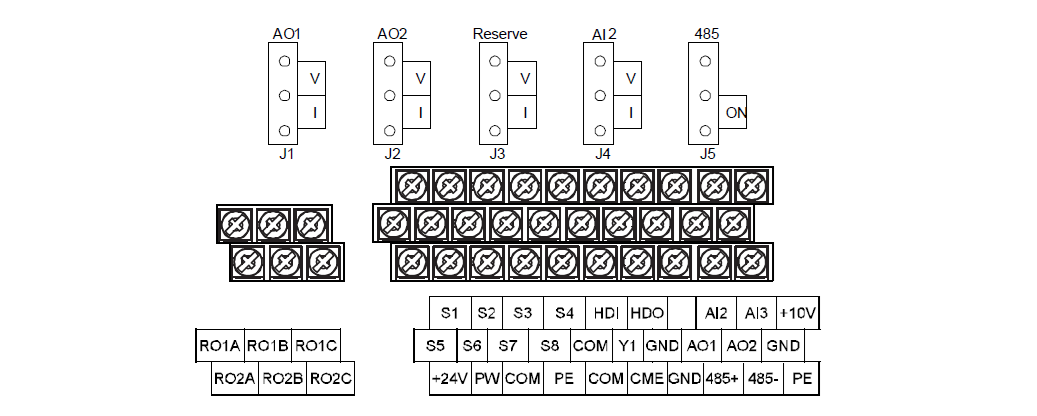

Control terminal with programmable control functions.

Digital Inputs: S1 / S8 + HDI.

Digital Outputs: Y1 - HDO terminal

Analog Inputs: 2*AI2 - AI3 0-10V/4-20mA

Analog Output: 2*AO1 0-10V/4-20mA

Relay Outputs: RO1 / R02

Control function:

Speed control

Torgue control

HVAC PID control

PLC or Multispeed-step control.

Standard LCD Operator panel in front (With parameter copy function)

Internal Fan cooling

Certification: CE., UK/CA

Rohs. Compliant
