Industrial Heavy duty VFD Frequentie omvormer 55 kW 3PH400VAC

INVT Frequentieregelaar GD200A-055G-075P-4 heavy Load 110A / Normal load 150 A

Industrie prijs € 5980,-

Artikelcode: GD200A-055G-075P4

INVT Goodrive200A VFD Series

General purpose dual rating frequentieregelaar.

Sensorless vector and V/F control.

Control function: Speed control torgue control and simple PLC PID or multispeed.

Model Name : GD200A-55G-075P-4

Input: AC 3Phase 380-440Vac +/- 15% 50/60 Hz

Output AC3: 0-Uin.VAC 0-400 Hz.

Output current: 110 A Heavy load

Output current: 150 A Normal load

Build in EMC filter C3 EN61800-3

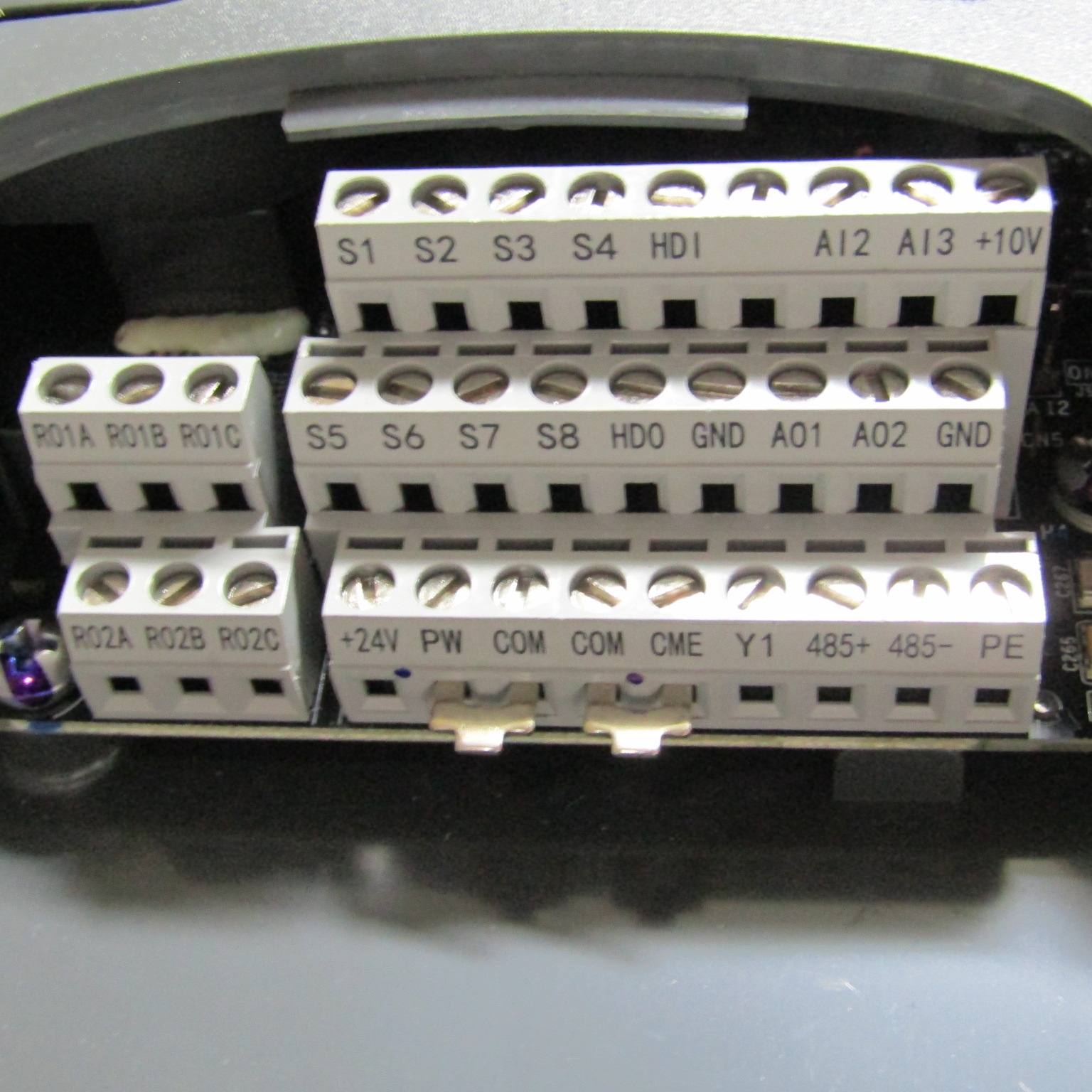

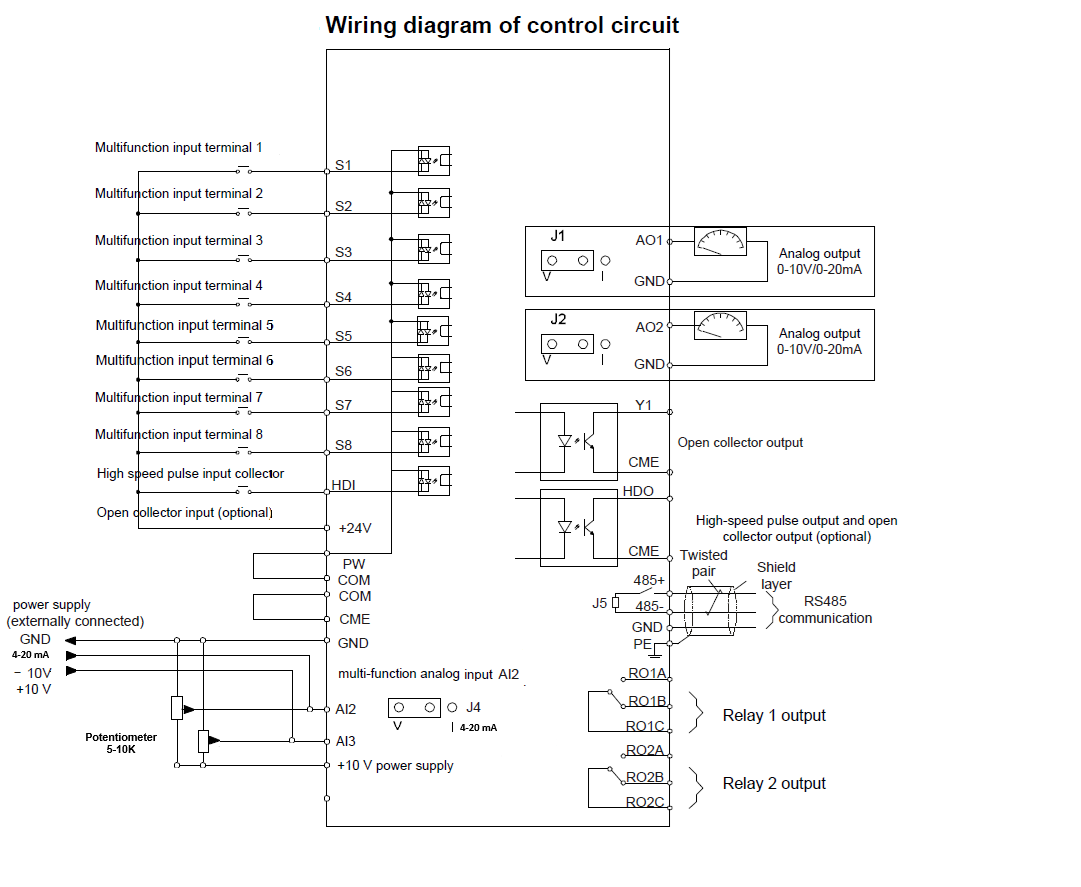

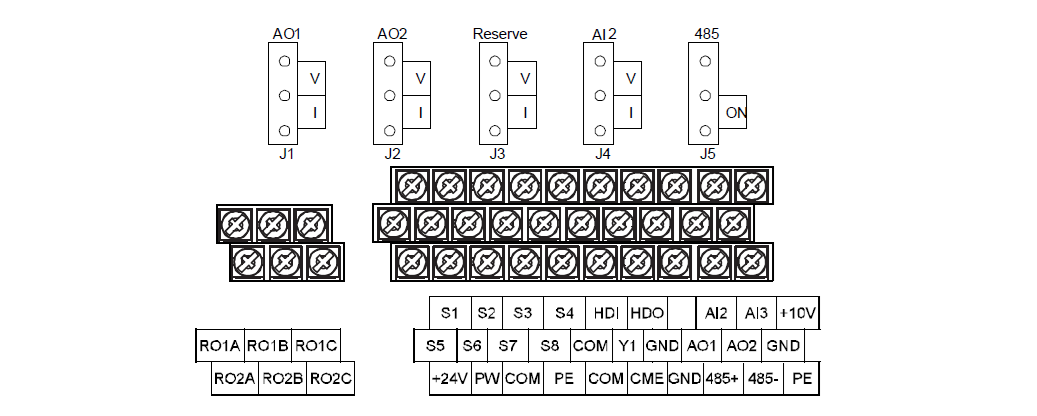

Control terminal with programmabable inputs and outputs

Standard removable operator panel in front.

Internal Fan cooling

IEC national standards and CE

Certification: CE., UK/CA

Rohs. Compliant
