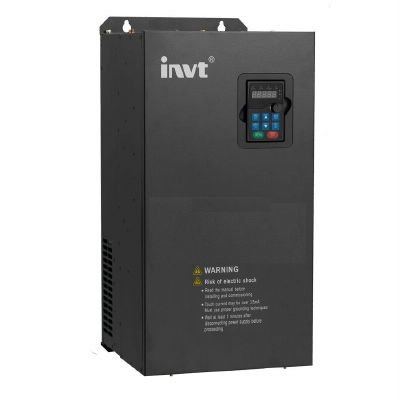

Industrial Heavy duty VFD Frequentie omvormer 45 kW 3PH400VAC

INVT Frequentieregelaar GD200A-045G-055P-4 heavy Load 90A / Normal load 110 A

Industrie prijs € 4670,-

Artikelcode: GD200A-045G-055P-4

INVT Heavy duty VFD Series

General purpose dual rating frequentieregelaar.

Sensorless vector and V/F control.

Model Name : GD200A-045G-055P-4

Input: AC 3Phase 380 +/- 15% - 440Vac +/- 10% 50/60 Hz

Output AC3: 0-Uin.VAC 0-400 Hz.

Output current: 90 A Heavy load

Output current:110 A Normal load

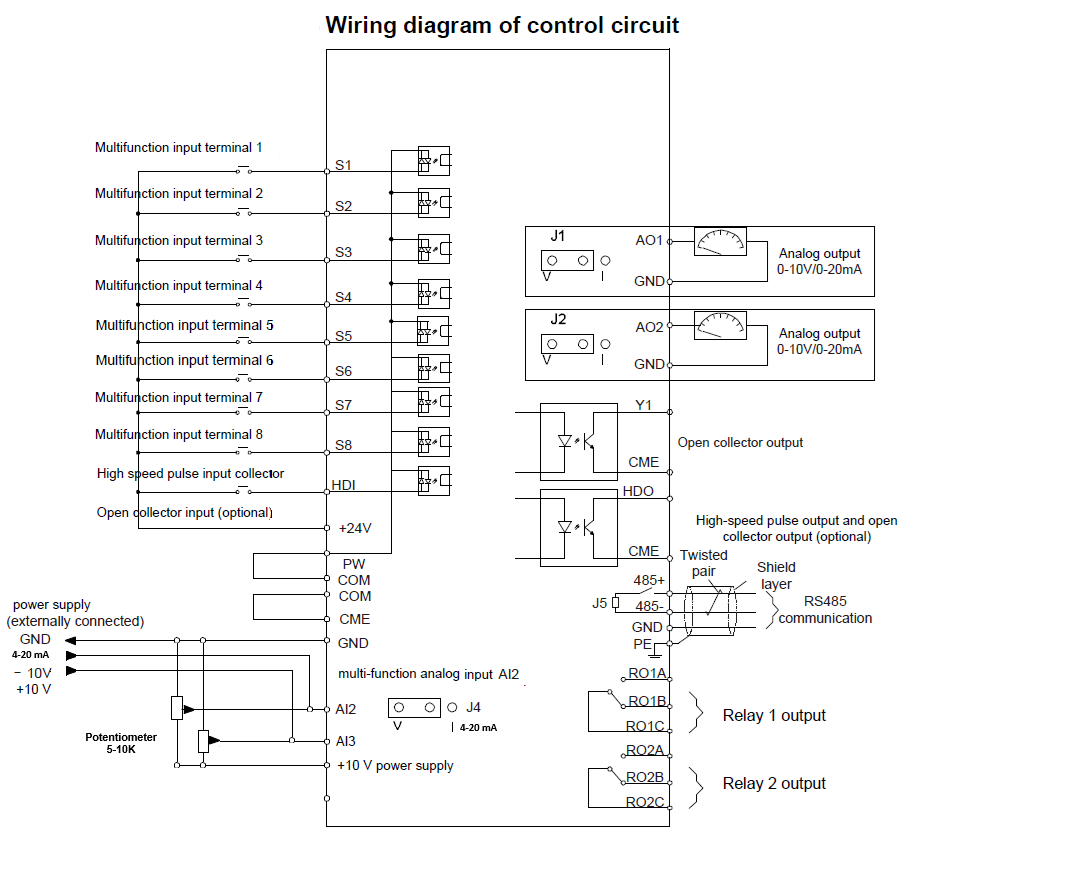

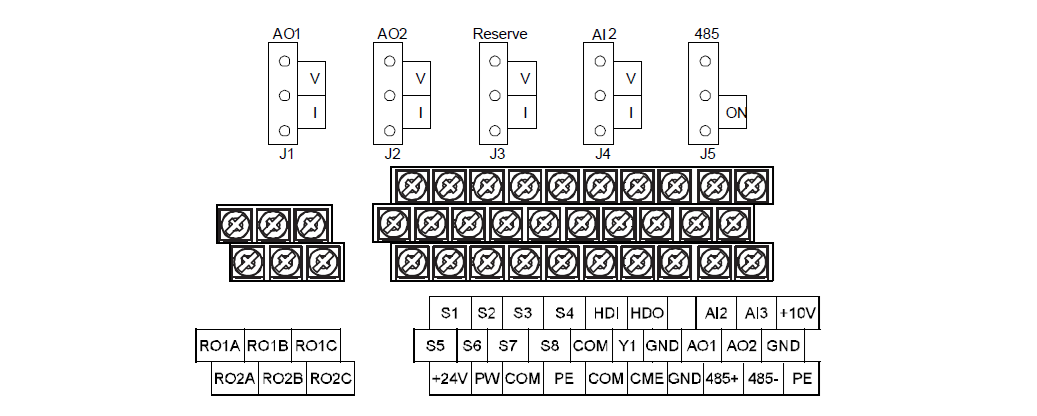

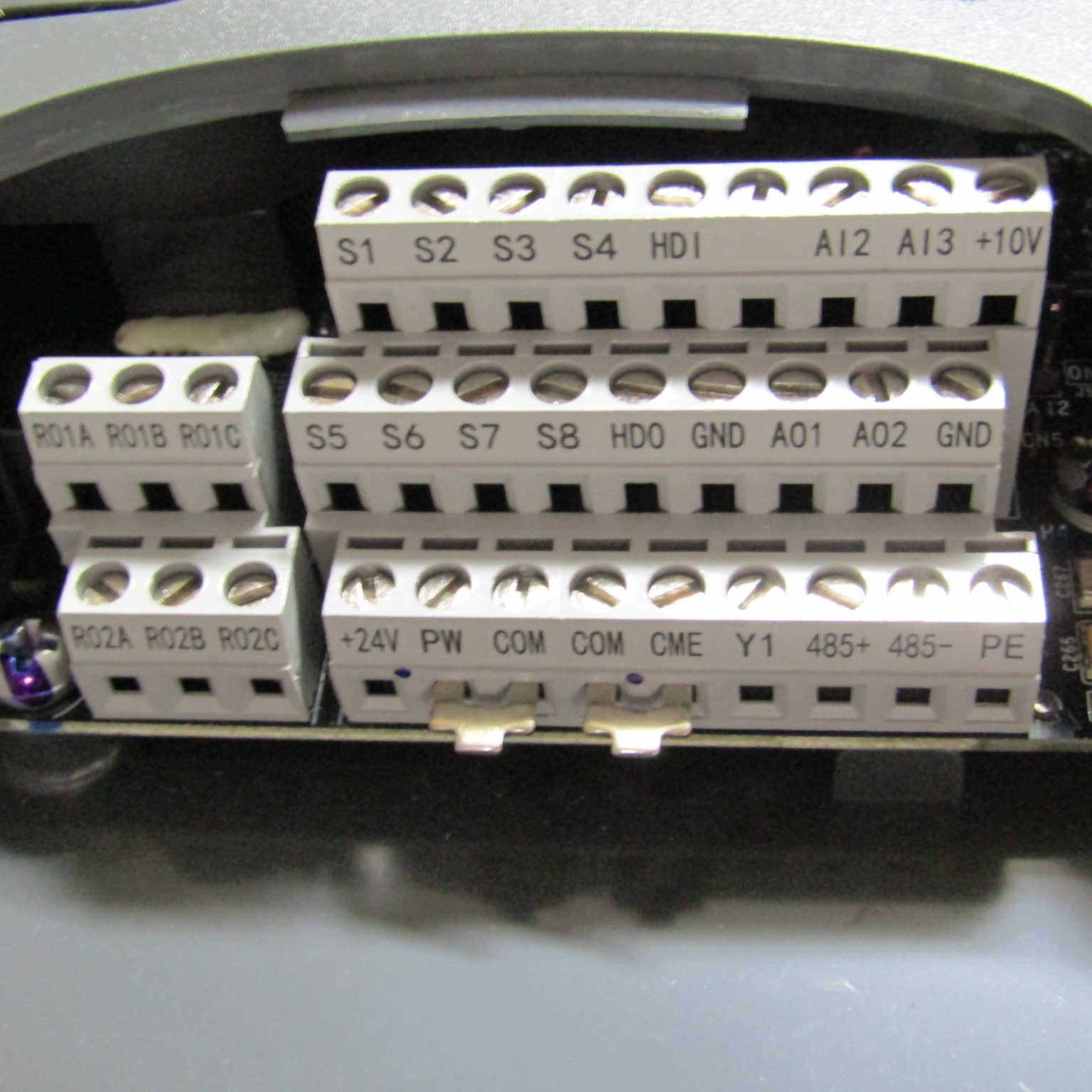

Control terminal with programmable control functions.

Digital Inputs: S1 / S8 + HDI.

Digital Outputs: Y1 - HDO terminal

Analog Inputs: 2*AI2 - AI3 0-10V/4-20mA

Analog Output: 2*AO1 0-10V/4-20mA

Relay Outputs: RO1 / R02

Control function:

Speed control

Torgue control

HVAC PID control

PLC or Multispeed-step control.

Standard LCD Operator panel in front (With parameter copy function)

Internal Fan cooling

Build in EMC filter C3 EN61800-3

Certification: CE., UK/CA

Rohs. Compliant
