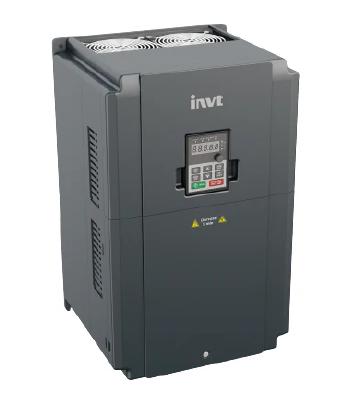

INVT Frequentieregelaar 75 kW 3PH400VAC

GD20-075G-4-EU vfd heavy duty load 110A

Industrie prijs 5720,-

Artikelcode: GD20-075G-4-EU

Industrial VFD Frequentieregelaar

INVT Goodrive Series

Model name : GD20-075G-4-EU

Power input: 3PH 400Vac +/- 15% 43-60Hz.

Power output: 3PH AC 0V..Uin

Heavy duty load : 75 kW 150 A

Output Frequency 0-400Hz

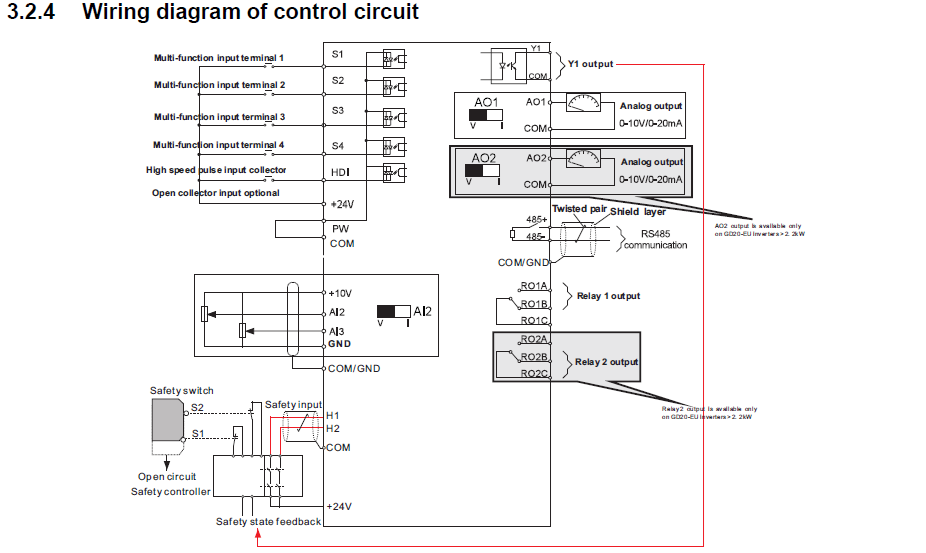

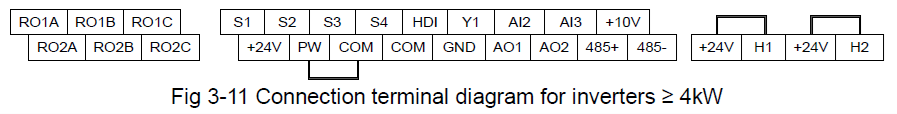

Programmable digital inputs: S1-S4 + HDI

Digital outputs: Y1

Analog outputs: AO1 / AO2

Relay outputs: RO1 / RO2

Supports STO input: H1 H2

CE, TÜV-SUD UK/CA certificated.

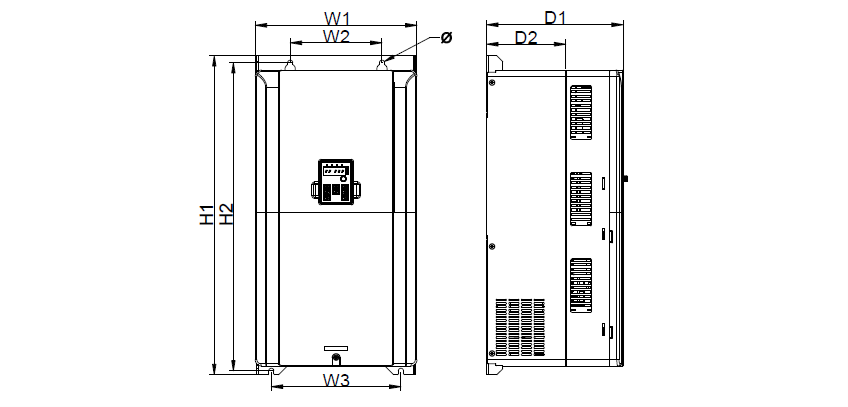

Dimensions: HXBXD 560x282x239 mm

Gross Weight: 34,6 Kg

Ean code: 8504408890

Rohs compliant.
