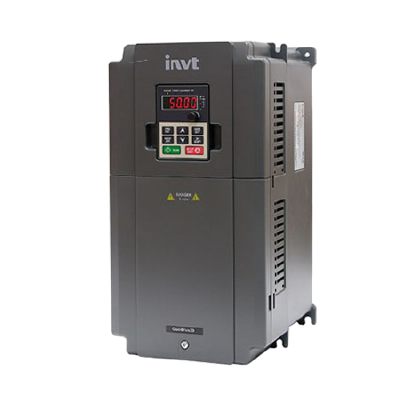

INVT Frequentieregelaar 7.5 kW 3PH400VAC

GD20-7R5G-4-EU heavy duty load 18.5 A VFD with STO function

Industrieprijs € 815,-

Artikelcode: GD20-7R5G-4-EU

Industrial VFD Frequentieregelaar

INVT Goodrive Series

Model name : GD20-7R5G-4-EU

Power input: 3PH 380 +/- 10% 440VAC +/- 15% 43-60Hz.

Power output: 3PH AC 0V..Uin Heavy duty load : 7.5 kW 18,5A

Output Frequency 0-400Hz

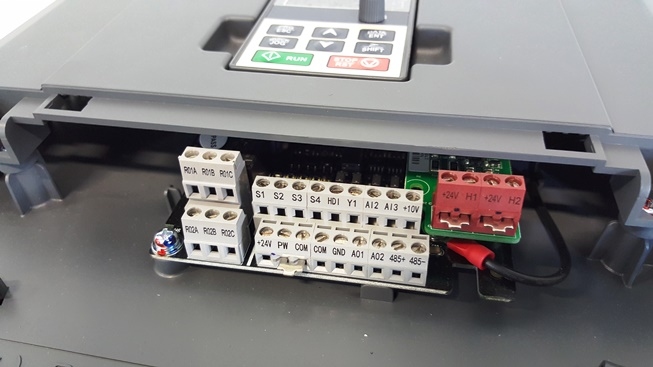

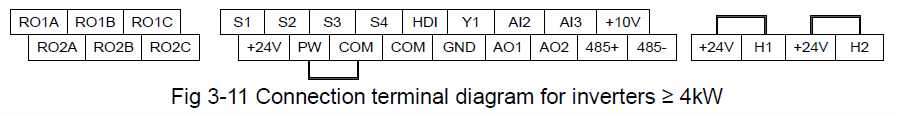

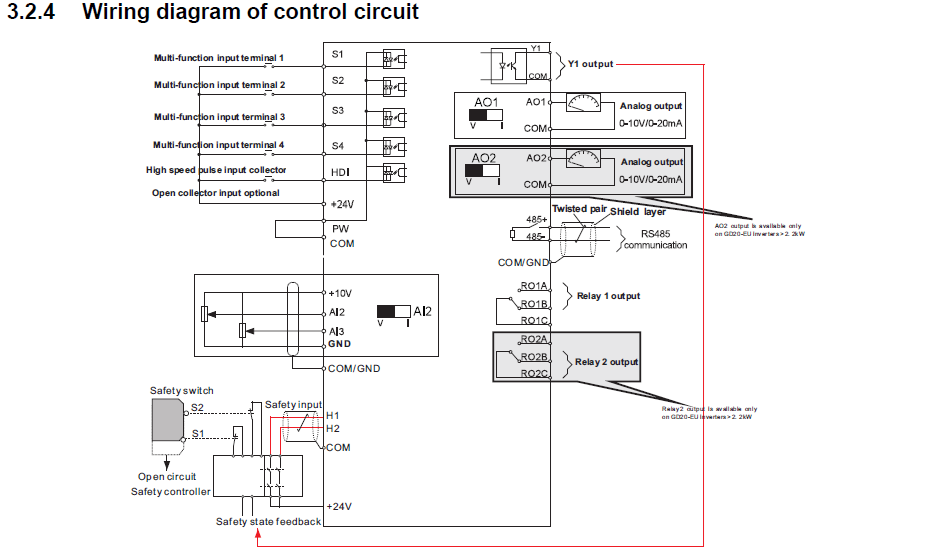

Programmable digital inputs: 5

Digital outputs: Y1

Analog outputs: AO1 / AO2

Relay outputs: RO1 / RO2

Supports STO input

CE, TÜV-SUD UK/CA certificated.

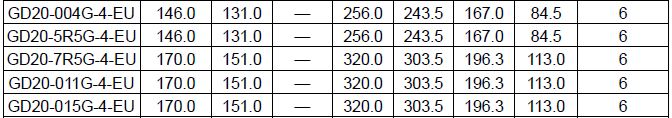

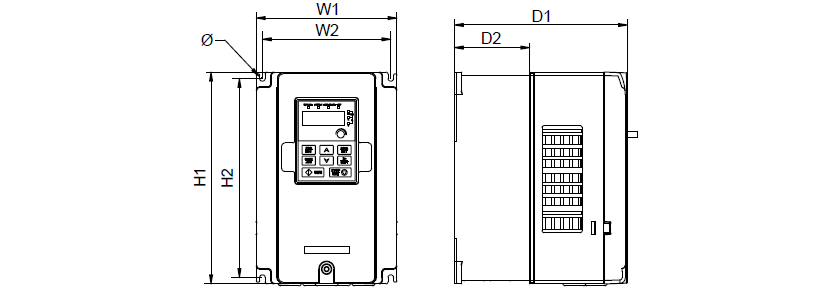

Dimensions: HXBXD 320x170x197 mm

Gross Weight: 5,6 Kg

Ean code: 8504408890

Rohs compliant.
